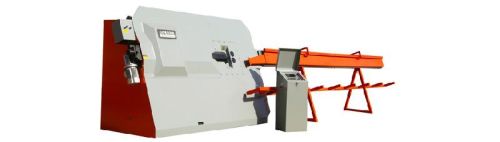

YT-13S
.Remote function: With (3 route control )
.Straightening system�S arc straightening (Our patented product)
.Single Strand Diameter(mm)�Φ6-Φ13
.Double Strand Diameter(mm)�Φ6-Φ10
.Bending Angle�1°-180°
.Max Pulling Speed�170mmin
.Length Tolerance: ±1mm
.Angle tolerance: ±1°
.Production capacity(single strand): 1100 pcs hour
.Production capacity(double strand): 2200 pcs hour
.Bending direction : Bi-direction
.Elbow Move up and down: with
.Double wheels reverse conveying mechanism: With (Our patented product)
.Equipment dimension (mm): 3450�1280�2090
.Steel straight bar collection frame (mm): 6000�650�500
.Rated power: 32KW
.Equipment Weight: 2100KG
