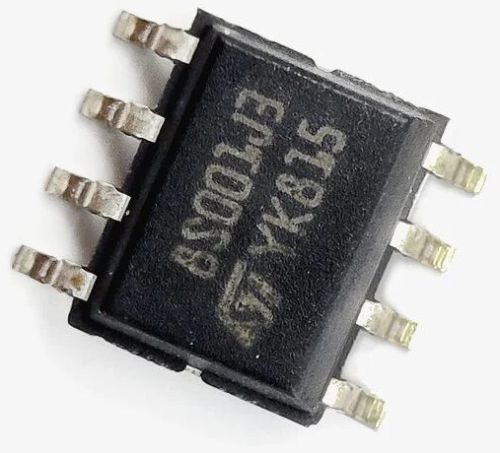

STM8S001J3M3 8S001J3 SOP-8 New Original IC Chip

STM8S001J3M3 8-bit Microcontroller is a low cost and robust microcontroller offered by STMicroelectronics for systems where primary requirement is performance, robustness and low cost. Like Stm8L051F3P6, it also has STM8 Core CPU which can process 16MIPS at 16MHz thereby ensuring performance and processing power for your application. It has 8Kbyte of flash memory, 1Kbyte of RAM and 10-bit ADC for your application. It is available in SOP-8 package which means it has 8 pins and 5 of them can be used for external interrupts. It has 5 GPIOs with four of them having high sink outputs. You can use it in the hobbyist projects and also in low-cost industrial application where you want. For Emulation and In Circuit Debugging you can use STice emulation system offered by the ST Microelectronics and for programming and development you can use ST Visual Develop and ST Visual Programmer or ST socket boards available specifically for programming. You can use this MCU as a standalone IC instead of breakout boards like STM32F030F4P6 Development Board, STM8S103F3P6 STM8 Development Board or Atmel microcontrollers.
Specifications
2.95 V to 5.5 V operating voltage
Temperature range: −40 °C to 85 °C
Harvard architecture and 3-stage pipeline
10-bit ADC
UART, Smartcard, IrDA, SPI, I2C
5 GPIOs all external interrupt enabled
Embedded single-wire interface module (SWIM)
