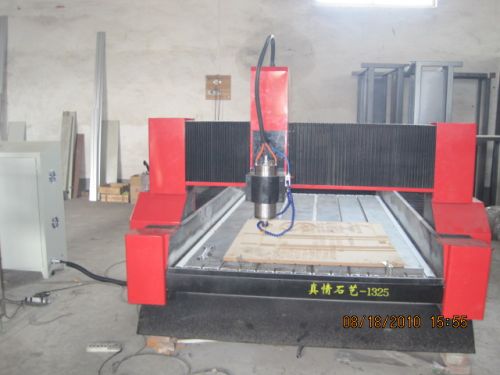

Stone Engraving Machine

Kinds of stone engraving machine
model zk-9015 zk-9018 zk-1218 zk-1325
structure heavy structure heavy structure heavy structure heavy structure
x-y-z axis work area 900mm1,500mm,300mm 900mm1,800mm,300mm 1,200mm1,800mm,300mm 1,300mm2,500,300mm
machine size 1,570mm2,100mm 1,570mm2,500mm 1,900mm2,400mm 1,970mm3,100mm
resolution 0.025mm 0.025mm 0.025mm 0.025mm
xy drive machinism rack pinion and gear drive rack pinion and gear drive rack pinion and gear drive rack pinion and gear drive
z drive machinism balls crew drive ball screw drive ball screw drive ball screw drive
guide linear square rails linear square rails linear square rails linear square rails
max speed 25m/min 25m/min 25m/min 25m/min
max engraving speed 20m/min 20m/min 20m/min 20m/min
spindle power 4.5kw water cooled 4.5kw water cooled 4.5kw water cooled 4.5kw water cooled
spindle speed 0-24000r/min 0-24000r/min 0-24000r/min 0-24000r/min
inverter power 5.5kw 5.5kw 5.5kw 5.5kw
drive motors stepper motors stepper motors stepper motors stepper motors
working voltage ac380v/50-60hz ac380v/50-60hz ac380v/50-60hz ac380v/50-60hz
command code g code g code g code g code
computer interface usb usb usb usb
collect 3.175mm,6mm,12.7mm 3.175mm,6mm,12.7mm 3.175mm,6mm,12.7mm 3.175mm,6mm,12.7mm
software ucancam v8/type3/artacam ucancam v8/type3/artacam ucancam v8/type3/artacam ucancam v8/type3/artacam
controls nc studio/dsp nc studio/dsp nc studio/dsp nc studio/dsp
net weight 1600kg 1800kg 2000kg 2500kg
 optional rotary attachment/dsp offline control system
we can also customize our machines according to your requirments.
Appreciate your enquiry.
