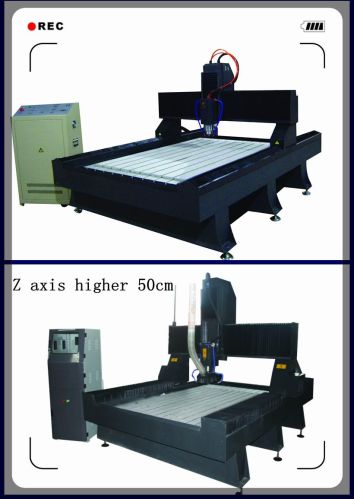

Stone Engraving Machine, Stone Cutting Machine

We are offering stone engraving machine, stone cutting machine.
feature:
1.x,y,z three-axis all the imported linear square orbit .
2.x,y,z three-axis all have the waterproof, dustproof system
3.water cooling constant torque spindle with the imported with the imported bearing, high power, low tone
4.adopt taiwan transducer with stable output signals
5.fully sgielded,bending circuity, and imported electronic components.
6.adopt double drivers to drive y axis, motivity is more stronger
7.whole seamless steel structure,can load weight up to 1000kg
performance features:
1.three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .
2.whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1mt weight at least.
3.constant power spindle and motor,hightly cutting capability ,high efficiency.
4.well compatibility, compatible sofetware cad/cam, such as type 3, artcam,castmate,wentai,coredraw.
5.double direction cutters cooling system can prolong the lifetime of using.
6.high flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.
thechnical specifications:
performance parameter
9015
x,y working area
900mmx1500mm
z working area
250mm
table size
1100mmx2000mm
processing precision
0.05mm
reposition precision
0.02mm
table structure
aluminium
x,y,z structure
x,y,z ballscrew
command
g code
machine power
2kw
max processing speed
6000mm/min
max speed
8000mm/min
working voltage
ac380v/50hz
spindle power
5.5kw
spindle rotating speed
0-24000rpm/min
drive motor
stepper
operation system
pci card control
