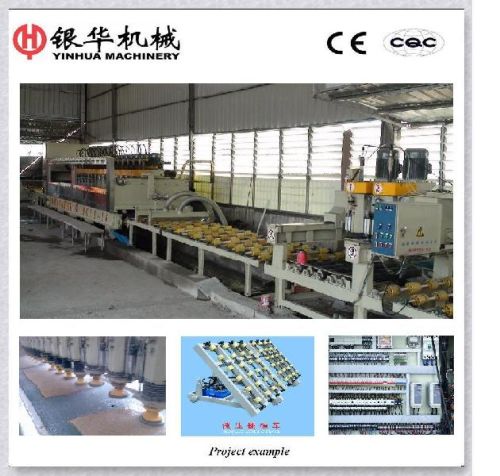

Stone Polishing Machine

It adopts PLC terminal control system; Operator can set the parameters by the programmable controller with LCD screen.It is equipped with trouble alarm and abrasive block consumption alarm systems. It is qualified for continuous grinding and polishing granite stone slabs. The speeds of work piece conveyor and cross beam adopt converters to adjust their speed. Its processing width and working pressure of grinding heads are adjustable. Each grinding head can rise and fall automatically following the work piece movement. The machine also has the function of avoidance. Meanwhile, the main motor of this machine is only 7.5kw with 16 pcs and it uses the common round abrasive, so that it has the high efficiency energy saving and environmental protection function.
Name MGLX-12162024
No. of heads 12162024pcs
Max.polishing width 600-1200mm
Useful working thickness 13-50mm
Speed of conveyer belt 0-2800mm
Frequency of front-back swing 30timesm
Main motor power 16*7.5kw
Journey of air cylinder 100mm
Water consumption 15m³h
