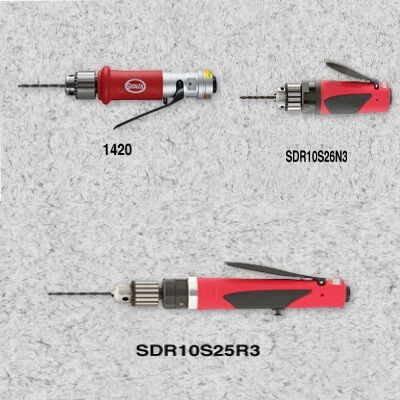

Straight Drills

Straight Drills

Get Latest Price

PurityReversible and Non-Reversible, Lever Start, Rubber Grip (1420, 1422)
Power0.33 hp (0.25 kW) – 1 hp (0.75 kW)
Chuck Capacity1/4” (6 mm) – 1/2” (13 mm)
Speed Range300 rpm – 21,000 rpm
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

View More Details

Company Information

Snap-on Tools Private Limited

Begampur Khatola, Gurugram, Haryana

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

Product Details

Model Number	Chuck Capacity		Free Speed rpm	Weight
Model Number	in	mm	Free Speed rpm	lb	kg
0 33 hp (0 25 kW) – Non-reversible
1420	1/4	6	2600	1.2	0.54
DR1422	1/4	6	3600	1.2	0.54
1 hp (0 75 kW) – Non-reversible
SDR10S4N3	3/8	10	400	2.8	1.25
SDR10S4N4	1/2	13	400	2.8	1.25
SDR10S7N3	3/8	10	700	2.8	1.25
SDR10S12N3	3/8	10	1200	2.8	1.25
SDR10S16N3	3/8	10	1600	2.8	1.25
SDR10S26N2	1/4	6	2600	2.3	1.05
SDR10S26N3	3/8	10	2600	2.3	1.05
SDR10S40N2	1/4	6	4000	2.3	1.05
SDR10S40N3	3/8	10	4000	2.3	1.05
SDR10S60N2	1/4	6	6000	2.3	1.05
SDR10S60N3	3/8	10	6000	2.3	1.05
SDR10S180N2	1/4	6	18000	1.85	0.84
SDR10S210N2	1/4	6	21000	1.85	0.84
1 hp (0 75 kW) – Reversible
SDR10S3R3	3/8	10	300	2.8	1.25
SDR10S3R4	1/2	13	300	3.2	1.45
SDR10S5R3	3/8	10	500	2.8	1.25
SDR10S5R4	1/2	13	500	3.2	1.45
SDR10S7R3	3/8	10	700	2.8	1.25
SDR10S7R4	1/2	13	700	3.2	1.45
SDR10S12R3	3/8	10	1200	2.8	1.25
SDR10S12R4	3/15	13	1200	3.2	1.45
SDR10S20R2	3/16	6	2000	2.2	1
SDR10S20R3	3/17	10	2000	2.3	1.05
SDR10S20R4	3/18	10	2000	2.8	1.25
SDR10S25R2	3/19	6	2500	2.2	1
SDR10S25R3	3/20	10	2500	2.3	1.05
SDR10S40R2	3/21	6	4000	2.2	1
SDR10S40R3	3/22	10	4000	2.3	1.05

Length		Side To Center		Maximum Air Consumption		Spindle Thread
in	mm	in	mm	cfm	l/s	Spindle Thread

8	203	0.6	15	12	6	3/8^-24
8	203	0.6	15	12	6	3/8^-24

9.3	236	0.8	20	30	14	1/2^-20
9.3	236	0.8	20	30	14	1/2^-20
9.3	236	0.8	20	30	14	1/2^-20
9.3	236	0.8	20	30	14	1/2^-20
9.3	236	0.8	20	30	14	1/2^-20
8.3	211	0.8	20	30	14	1/2^-20
8.3	211	0.8	20	30	14	3/8^-24
8.3	211	0.8	20	30	14	3/8^-24
8.3	211	0.8	20	30	14	3/8^-24
8.3	211	0.8	20	30	14	3/8^-24
8.3	211	0.8	20	30	14	3/8^-24
7.3	185	0.8	20	30	14	3/8^-24
7.3	185	0.8	20	30	14	3/8^-24

10.8	273	0.8	20	30	14	1/2^-20
11.3	285	0.8	20	30	14	1/2^-20
10.8	273	0.8	20	30	14	1/2^-20
11.3	285	0.8	20	30	14	1/2^-20
10.8	273	0.8	20	30	14	1/2^-20
11.3	285	0.8	20	30	14	1/2^-20
10.8	273	0.8	20	30	14	1/2^-20
11.3	285	0.8	20	30	14	1/2^-20
9.3	235	0.8	20	30	14	3/8^-24
9.8	248	0.8	20	30	14	3/8^-24
10.3	260	0.8	20	30	14	1/2^-20
9.3	235	0.8	20	30	14	3/8^-24
9.8	248	0.8	20	30	14	3/8^-24
9.3	235	0.8	20	30	14	3/8^-24
9.8	243	0.8	20	30	14	3/8^-24
