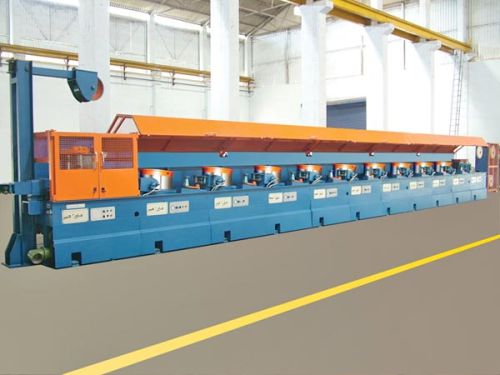

Straight Line Wire Drawing Machines

Listing ID #4293660

  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

No slip and No twist Drawing → to obtain high quality Wire Limited Dancer / Tuner roller → High responsive support for high speed wire drawing. Full Dancer Arm → Controlled response for high....
View More Details
Send Enquiry

Company Information

  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • No slip and No twist Drawing → to obtain high quality Wire
  • Limited Dancer / Tuner roller → High responsive support for high speed wire drawing.
  • Full Dancer Arm → Controlled response for high speed Fine wire drawing.
  • AC Inverter driven, Motor → Low inertia constant HP motors and sturdy drive for smooth working and Low Power consumption.
  • Heavy Duty European Helical Gear Box → Employed to transmit heavy Torque with high efficiency. Bearings continuously lubricated.
  • Induction Hardened Special alloy Forged Blocks → Build for High wear resistance and max heat transfer.
  • High efficient Wide Gap turbulent water cooling → Special Jacket arrangement facilitating water turbulence to obtain maximum Heat transfer.
  • External Air Blast cooling system → Additional Air blast surrounding the Drum through the State of the art intricate Sump.
  • Cassette Die Box mechanism → Sturdy , High pressure design for better Die cooling.
  • Brakes for the OTO Block and the Last Block → To facilitate stopping of the machine.
  • DIN 800 Spooler - 1 tons Capacity → Heavy Duty, designed for high speed wire collection at 20 M/sec.
  • In house built efficient electronic Programming → Proven Machine logics, efficiently programmed considering all the constraints of the Drawing operation.


Company Details close-icon

We profoundly wish to introduce ourselves as Excel Craft Machineries Pvt. Ltd TEST., formerly known as redaelli (india) pvt. Ltd., incorporated in the year 1994, a pioneer and leader in the field of manufacturing wire and cable making machines. Our unit in india started initially as a joint venture with m/s redaelli techna mechanica group, milano italy, who pioneered many developments in wire and cable machinery. During the joint venture, most of the technical knowhow for manufacturing of wire drawing for both ferrous & non ferrous material, drum twister lines, rigid stranding machines, lrpc lines, tubular stranding, skip stranding, bunching and twinning machines etc., were made available to the indian partner m/s. Redaelli (india) pvt. Ltd. M/s. Redaelli techna mechanica, italy is over 80 years in the world market along with group companies such as m/s. Ott –france (leaders in wire drawing machines) and m/s. J.a. Kraft – germany (pioneers in cable machinery).
Their experience has eventually facilitated us with wide range of proven products and technology. Additionally, our ongoing continual developments in the design of mechanical and electrical features have proved to be at par with the needs of the latest global standards. Located 25 km away from the central city of hyderabad, in the peaceful patancheru industrial area, is the works unit of excel craft machineries pvt. Ltd., lavishing in an ambience of greenery over a sprawling 2 acres. A granite stone wall encloses the factory, which is flaunted by impeccable gardens, well groomed lawns and dozens of beautiful trees. The excel
