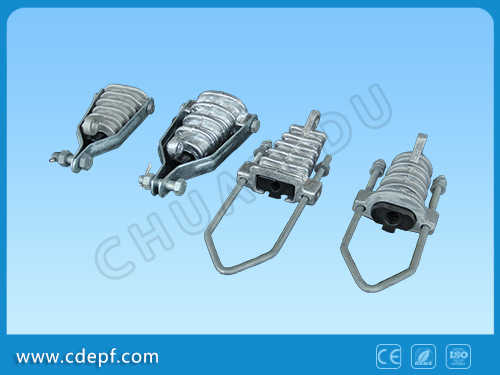

Strain Clamps For Insulated Cable

Strain clamps for insulated cable the strain clamp 1kv insulated wire this series of products are mainly used in the voltage rating of 1kv and below power overhead insulated line. When the installation is not peeling wire insulation layer,and using the wedge clamping mechanism directly hold insulated wire,wire clip using tension bearing of insulated conductors. Catalog no. Applicable wire type conductor diameter (mm) grip (kn) nx-35ly jklyj-35 9.8 3.4 nx-50ly jklyj-50 11.2 4.6 nx-70ly jklyj-70 12.8 6.7 nx-95ly jklyj-95 14.8 8.9 nx-120ly jklyj-120 16.2 11.3 nx-150ly jklyj-150 18.2 13.6 nx-185ly jklyj-185 20.2 17.3 nx-240ly jklyj-240 22.6 22.5 the strain clamp 10kv insulated wire this series of products are mainly used in the voltage rating of 10kv and below power overhead insulated line. When the installation is not peeling wire insulation layer, and using the wedge clamping mechanism directly hold insulated wire, wire clip using tension bearing of insulated conductors. Catalog no. Applicable wire type conductor diameter (mm) grip (kn) nx-35ly-10 jklyj-35-10 15.8 3.4 nx-50ly-10 jklyj-50-10 17.1 4.6 nx-70ly-10 jklyj-70-10 18.8 6.7 nx-95ly-10 jklyj-95-10 20.4 8.9 nx-120ly-10 jklyj-120-10 21.8 11.3 nx-150ly-10 jklyj-150-10 23.4 13.6 nx-185ly-10 jklyj-185-10 25.0 17.3 nx-240ly-10 jklyj-240-10 27.2 22.5 the strain clamp 20kv insulated wire this series of products are mainly used in the voltage rating of 20kv and below power overhead insulated line. When the installation is not
