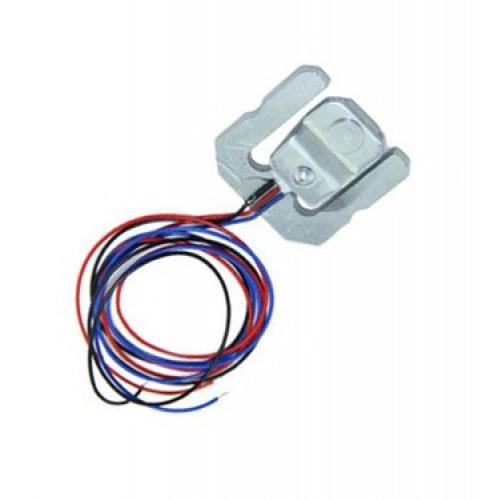

Strain Gauge Sensor

Strain Gauge Sensor

Listing ID #6254644

120 / Piece
Get Latest Price
  • Zero Drift (%F.S/1min)0.1
  • Repeatability (%F.S)0.1
  • Excitation Voltage (V)5~10
  • Product CodePRC-Strain-Gauge-Sensor-50-Kg
  • Supply Type Manufacturer, Exporter, Supplier, Distributor, Trader
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

fabtolab dot com
Sarjapur, Bangalore, Karnataka
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Dimension (mm) 28*28*8
  • Zero Output (mv/V) ±0.3
  • Capacity (kg) 50
  • Output sensitivity (mv/v) 1.1±0.15
  • Operation Temp. Range (°C) -10~+50
  • Temp. Effect on zero (%F.S/10°C) 0.2
  • Hysteresis (%F.S) 0.2
  • Output Resistance (Ω) 1000±50
  • Excitation Voltage (V) 5~10
  • Comprehensive error (%F.S) 0.2
  • Insulation Resistance (MΩ) ≤2000 (100VDC)
  • Product Code PRC-Strain-Gauge-Sensor-50-Kg
  • Zero Drift (%F.S/1min) 0.1
  • Temp. Effect on Output (%F.S/10°C) ≤0.15
  • Creep (%F.S/3min) 0.1
  • Nonlinearity (%F.S) 0.2
  • Method of connecting wire red= Sig + ; black= Exc –; blue= Exc +
  • Repeatability (%F.S) 0.1
  • Overload Capacity (%F.S) 150
  • Input Resistance (Ω) 1000±50
  • Features Sturdy material, Up to 50kg sensor range, Parallel use to add additional capacity
