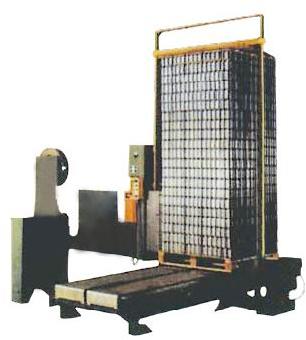

Strapping Packing Machine For Empty Tin Cans

Strapping packing machine for empty cans :
This machinery is an automatically strapping device which stands after the cans palletizer. It has features like highly automatic, neat strapping, smooth and reliable operation, and pleasant figure. In the strapping procedure, it automatically senses the strapping location, passes the strips, pulls tight, hot adheres, cuts the strips, pulls out the loaded pallets and goes back to standby state. The whole automation system replaces manual operation, which improves strapping quality and efficiency, and reduces operators and intensity of labor.
Functions of device & Technical parameters:
1. Pallet Dimensions: 1100 mm x 1400 mm or 1000 mm x 1200 mm, (pallet height 140 mm  to 150 mm), stacking goods height 1200 mm to 2200mm
2. Packing speed: ≤ 30s/ track ( excluding locating time)

3. On-line deliver platform height: 620 mm ± 30 mm

4. Power Supply：380 V/ 50 Hz/ 1000 W

5. Straps: PP band, width (13 mm to 14 mm) × thickness (0.7 to 0.9 mm), inside diameter 210 mm, outside diameter: less than 460 mm.

6. Hot adhering location: lateral side; Adhering method is the same with other equipments.

7. Adhering location is 650 mm from the conveying line, which means the height of the goods to be strapped should be more than 750 mm.
8. The distance between the lateral side of the goods and edge of the conveying line should be less than 200 mm.

9. The inter-space of the pallets where the strips pass should be more than 80 mm in height, 100 mm in width.

10. Strapping manner: parallel 1-2 tracks cylinder puncture, opt-electronic or manually.

11. Operating process: First the goods are delivered to the strapping area. When it reaches the first strapping position, non-shaft cylinder under the packing machine starts to work and moves closer to the pallet, and the strap track at the bottom stretches. After the first strapping, the machine goes back to original position. Then the goods are delivered to the second strapping position. The machine repeats the first action and moves out the pallet to the turning table. The turning device turns the pallet by 90 degree and delivers it back to the strapping area. Same strapping procedure is operated. Now the packing procedure is finished (conveying line and turning platform should be equipped additionally).
