STRIP CLADDING DEVICE

Listing ID #3918572

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

FEATURES For pressure vessel manufactured pipe, tube sheet surface automatic cladding. Submerged arc welding and electroslag cladding process. Tiny strip cladding head - KSC-30 Strip type: 30mm....

View More Details

Send Enquiry

Product Details

FEATURES

For pressure vessel manufactured pipe, tube sheet surface automatic cladding. Submerged arc welding and electroslag cladding process.

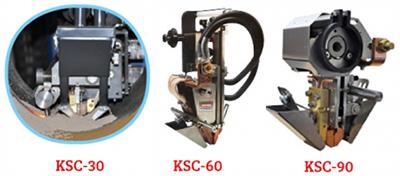

Tiny strip cladding head - KSC-30
- Strip type: 30mm wide, 0.4/0.5mm thickness
- Clad work: Outer cladding: OD>220mm
- Inner cladding: ID(after weld)>350mm(longitudinal) ID(after weld)>360mm(circum)
- Preheat temperature: above 250℃(forced water)
Medium strip cladding head - KSC-60
- Medium strip cladding head
- Strip type: 30~60mm wide, 0.4/0.5mm thickness
- Clad work: Outer cladding: OD>220mm
- Inner cladding: ID(after weld)>400mm(longitudinal) ID(after weld)>600mm(circum)
- Preheat temperature: above 250℃(forced water)
Conventional strip cladding head - KSC-90
- Strip type: 30~120mm wide, 0.4/0.5mm thickness
- Clad work: above ɸ800mm
- Preheat temperature: above 100℃(forced water)
- Magnetic control should be used when above 60mm strip

Company Details

Kaiyuan Welding & Cutting Automation India Private Limited is a manufacturing company established in 2015 and located in Pune, Maharashtra, India. Kaiyuan Welding & Cutting Automation India Private Limited has focus on welding & cutting equipment and idler roller manufacturing machines.
Our demo center is located in our Pune plant where we can show our customers some of the products such as narrow gap SAW, narrow gap TIG, narrow gap MIG, submerged ARC welding machines, idler roller manufacturing machines, CNC pipe cutting machine, presure vessel cutting and welding machine, tube to tube joint TIG welding machine, strip cladding system etc.
Kaiyuan Submerged arc welding machines are desinged based on Kaiyuan special technology and Panasonic technology to ensure the high reliability and performance. Furthermore Kaiyuan Submerged arc welding machines are manufactured by Panasonic China with the brand of KAIYUAN. Kaiyuan SAW welding machine include 1200A thyristor and inverter SAW machine, 1250A AC machine which popular be used for tandem welding, twin arc welding and single wire welding etc.
Kaiyuan has the best idler roller manufacturing machines which can cover all the process for idler roller manufacturing. Individal machines include Pipe cutting machine, double end boring machine, bearing and housing assembly machine, housing welding machine and idler shaft manufacturing machine. Kaiyuan also provides full automatic idler roller production line for complete roller line automation.
