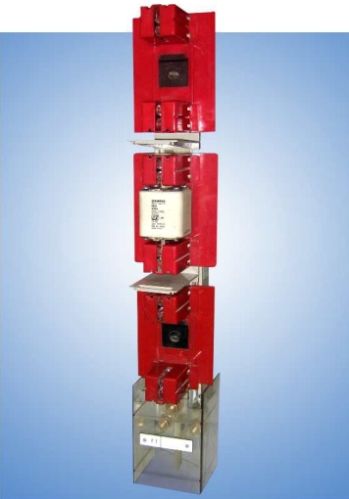

Strip Fuse Ways

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

LV HRC fuse bases can be combined to form distribution systems having desired number of electrical circuits. Due to their compact design these are particularly suitable for distribution application....

View More Details

Send Enquiry

Company Information

Aisatic Electrical Switch Gear Pvt. Ltd.

Naraina, Delhi

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

LV HRC fuse bases can be combined to form distribution systems having desired number of electrical circuits.

Due to their compact design these are particularly suitable for distribution application in Service Cabinets, Feeder Pillars and Distribution Boards.

The body of the fuse base is made of glass fibre reinforced polyster on which the spring loaded silver/tin plated fuse contacts are mounted. Fuse contacts are covered with shroud of insulating material for added safety against accidental contact.

The fuse bases are bolted directly to the bus bars. The terminals of the fuse bases are tin of plated copper.

The LV HRC fuse bases comply generally with DIN 43623:

Size 1-3 Form B Provided with vertical droppers for cable connection at bottom The fuse bases of Sizes 1-3 are suitable for a spacing

between bus bar centers of 185 mm and depth of 153 mm.

Type	GDVF-3/250A	GDVF-3/400A	GDVF-3/630A
RATED Operating Voltage	500 V, 50 Hz	500 V, 50 Hz	500 V, 50 Hz
Rated Thermal Current	250 A, Size 1	400 A, Size 2	630 A, Size 3
Rating Insulation Voltage	660 V	660 V	660 V
HRC Fuse Links	DIN 43620	DIN 43620	DIN 43620
Short time withstand Capacity (Dynamic Peak)	10kA	18.62 kA	22.66 kA
Weight Without Fuse Links	2.650 KG	3.405 KG	4.105 KG
Short Circuit Capacity with HRC Fuse Links	50 kA (Prospective)	50 kA (Prospective)	50 kA (Prospective)
