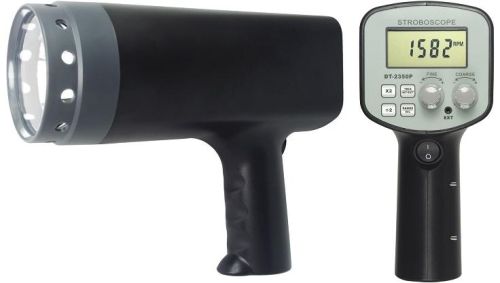

Stroboscope DT-2350PA 215x85x180 mm, Brand Name : Realltech

Stroboscope DT-2350PA

1.Spec:

The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object, can also use to observe the movement tracks.

2.Features:

* Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.

* Automatic stop flashing to save electricity and improve flash tube lifetime.

* Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment.

* Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.

* Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.

3.Specifications:

Display:LCD

Range:DT-2350PA:50~12,000 FPM

           DT-2350PB:50~40,000 FPM

           DT-2350PC:50~20,000 FPM

           DT-2350PD:50~30,000 FPM

           DT-2350PE:50~2,000 FPM(Fit Print and Textile)

Resolution:0.1 FPM(50~999.9 FPM)

                 1 FPM(Over 1000 FPM)

Accuracy:±(0.05%n+1d)

Sampling Time:0.3 Seconds

External Trigger Level:3~24 V

H/L Range:Flashing Light is much Brighter at

                 Low Range than at High Range

Flash Tube Life:100 Millian Times

Operating Conditions:Temperature:0~40ºC;Humidity:
