Contact SupplierGuardwel, a trusted manufacturer of Quality Physical Security & Fire Resisting Products for the Banking & Financial Industry since 1986.
Guardwel’s range of Fire & Burglary Resistant Safes, TRTL Safes, Strong Room Doors, Fire resistant filing cabinets, Fire Protection cabinets and Safe Deposit Lockers is the simplest and the most comprehensive answer to all the concerns of enhanced attack levels. Guardwel provides a worry free solution for the safety and protection of all your valuables and belongings.

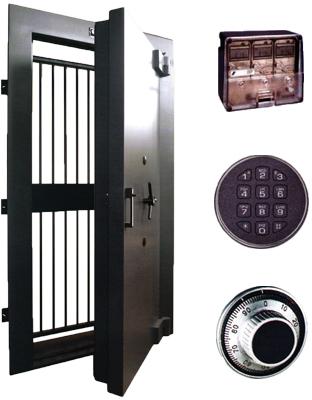

Strong Room Door
Door Construction – Doors are made of tough steel plates, armor plates and special oxyacetylene flame resisting and fire &  hammer resisting barrier material. This combination of different layers makes penetration of the door difficult even with multiple modes of attacks.
Door slab
Standard | Premium (B Class) |
|
|
Door frame
Boltwork
Locking Mechanism
Grill gate – Made of steel flats, ‘C’ channel & 19mm dia. M.S. round bars provided with dual control key lock that can be operated from inside and outside. This sturdy door provides further security, when the main door is open.
Finish – All the components are thoroughly cleaned with chemicals & given anti rust coating before applying 3 coats of decorative paint for hard & long lasting finish. Appropriate packing ensures the protection of finish during transit and installation.
Optional
User specified Biometric locks, Time locks, Time delay locks or provision for fitting them, can be availed at an extra cost.
pecification | Ref. | SRD Standard | SRD Premium |
mm | mm | ||
Over door frame | A | 1210×2132 | 1325 x 2200 |
Clear opening, door open to180° | B | 910x 1990 | 915 x 1992 |
Clear opening, door open to 90° | C | 787 x 1990 | 780 x 1992 |
Wall opening | D | 1091 x 2073 | 1100 x 2100 |
Projection of door open at 180° | E | 236 | 260 |
Projection of door open at 90“ | F | 1090 | 1110 |
Over all width of door & frame when door is open at 180“ | G | 2200 | 2267 |
Min. overall width of door & frame to give max clear opening | H | 1785 | 1930 |
Over vestibule plate I | 1016×2006 | 1023 x 2025 | |
Projection of grill gate open at 180” | J | 85 | 92 |
Projection of grill gate open at 90° | K | 1006 | 1006 |
Overall width of grill gate and frame when gate is open at 180″ | L | 1995 | 1968 |
Centre line of door opening to the edge of the frame | M | 605 | 665 |
Shipping data | |||
Specification | |||
External size after packing | Height | 2219 | 2274 |
Width | 1554 | 1607 | |
Depth | 555 | 555 | |
Net WT | 875 | 1210 | |
Tolerances : | Weight 3% | Dimension 1% |
