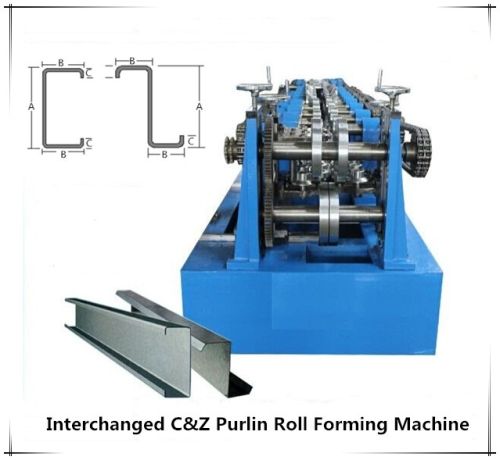

Structural Profile Roll Forming Machine

Structural Profile Roll Forming Machine
One machine can produce different sizes of purlines.
Main Technical Specifications:
Material: Carbon steel
Material Thickness:1.5-3mm
Landscape orientation adjustment range of Hole distance : 45-500m
Length of purlin: >3m
Forming Stations: 17 Main rollers
Leveling Stations: 7
Feeding Stations: 2
Main Power: 15KW
Machine Diameter: About 12500mm(L)x2300mm(W)x1600mm (H) ( including main motor )
Weight of machine: about 15 Ton
One machine can produce different CZ Purlins through simple manual st adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automatic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
CZ purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, run out tables.
This line main forming drive adopt reducer motor and frequency conversion control, speed control-
Product application of C shape purlin roll forming machine

They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
