Structural Steel - S- Beam - I - Beam

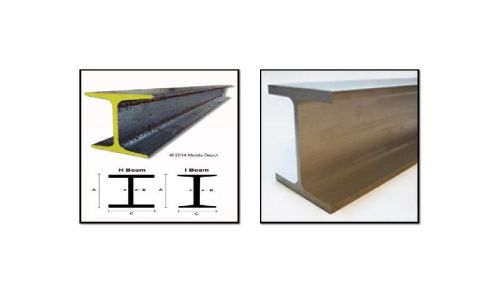

STANDARD I-BEAM AND S-BEAM
(A) Size Wgt. Per Ft. (B) Web Thk. (C) Flange Width (D) Flange Thk.
S 3 x 5.7 0.17 2.33 0.26
x 7.5 0.349 2.509 0.26
S 4 x 7.7 0.193 2.663 0.293
x 9.5 0.326 2.796 0.293
S 5 x 10 0.214 3.004 0.326
x 14.75 0.494 3.284 0.326
S 6 x 12.5 0.232 3.332 0.359
x 17.25 0.465 3.565 0.359
S 7 x 15.3 0.252 3.662 0.392
x 20 0.392 3.86 0.45
S 8 x 18.4 0.271 4.001 0.425
x 23 0.441 4.171 0.425
S 10 x 25.4 0.311 4.661 0.491
x 35 0.594 4.944 0.491
S 12 x 31.8 0.35 5 0.544
x 35 0.428 5.078 0.544
x 40.8 0.46 5.252 0.659
x 50 0.687 5.477 0.659
S 15 x 42.9 0.411 5.501 0.622
x 50 0.55 5.64 0.622
S 18 x 54.7 0.461 6.001 0.691
x 70 0.711 6.251 0.691
S 20 x 66 0.505 6.255 0.795
x 75 0.635 6.385 0.795
x 86 0.66 7.06 0.92
x 96 0.8 7.2 0.92
S 24 x 80 0.5 7 0.87
x 90 0.625 7.125 0.87
x 100 0.745 7.245 0.87
x 106 0.62 7.87 1.09
x 121 0.8 8.05 1.09
M-Beam · JR. or Light Beam M-BEAM · JR. OR LIGHT BEAM
(A) Size Wgt. Per Ft. (B) Web Thk. (C) Flange Width (D) Flange Thk.
M 6 x 4.4 0.114 1.844 0.171
M 8 x 6.5 0.135 2.281 0.189
M 10 x 9 0.157 2.69 0.206
M 12 x 11.8 0.177 3.065 0.225
