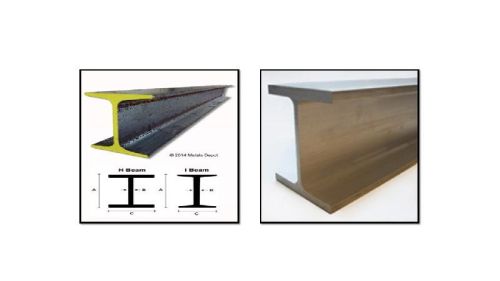

Structural Steel Wide Flange Beam - H - Beam

WIDE FLANGE BEAM – H-BEAM
Size Wgt. Per Ft. (A) Section Depth (In.) (B) Web Thk. (C) Flange Width (D) Flange Thk.
W 4 13 4.16 0.28 4.06 0.375
W 5 16 5.01 0.26 5 0.36
19 5.15 0.27 5.03 0.43
W 6 9 5.9 0.17 3.94 0.215
12 6.03 0.23 4 0.28
15 5.99 0.23 5.99 0.26
16 6.28 0.26 4.03 0.405
20 6.2 0.26 6.02 0.365
25 6.38 0.32 6.08 0.455
W 8 10 7.89 0.17 3.94 0.205
13 7.99 0.23 4 0.255
15 8.11 0.245 4.015 0.315
18 8.14 0.23 5.25 0.33
21 8.28 0.25 5.27 0.4
24 7.93 0.245 6.495 0.4
28 8.06 0.285 6.535 0.465
31 8 0.285 7.995 0.435
35 8.12 0.31 8.02 0.495
40 8.25 0.36 8.07 0.56
48 8.5 0.4 8.11 0.685
58 8.75 0.51 8.22 0.81
67 9 0.57 8.28 0.935
W 10 12 9.87 0.19 3.96 0.21
15 9.99 0.23 4 0.27
17 10.11 0.24 4.01 0.33
19 10.24 0.25 4.02 0.395
22 10.17 0.24 5.75 0.36
26 10.33 0.26 5.77 0.44
30 10.47 0.3 5.81 0.51
33 9.73 0.29 7.96 0.435
39 9.92 0.315 7.985 0.53
45 10.1 0.35 8.02 0.62
49 9.98 0.34 10 0.56
54 10.09 0.37 10.03 0.615
60 10.22 0.42 10.08 0.68
68 10.4 0.47 10.13 0.77
77 10.6 0.53 10.19 0.87
88 10.84 0.605 10.265 0.99
100 11.1 0.68 10.34 1.12
112 11.36 0.755 10.415 1.25
W 12 14 11.91 0.2 3.97 0.225
16 11.99 0.22 3.99 0.265
19 12.16 0.235 4.005 0.35
22 12.31 0.26 4.03 0.425
26 12.22 0.23 6.49 0.38
30 12.34 0.26 6.52 0.44
35 12.5 0.3 6.56 0.52
40 11.94 0.295 8.005 0.515
45 12.06 0.335 8.045 0.575
50 12.19 0.37 8.08 0.64
53 12.06 0.345 9.995 0.575
58 12.19 0.36 10.01 0.64
65 12.12 0.39 12 0.605
72 12.25 0.43 12.04 0.67
79 12.38 0.47 12.08 0.735
87 12.53 0.515 12.125 0.81
96 12.71 0.55 12.16 0.9
106 12.89 0.61 12.22 0.99
120 13.12 0.71 12.32 1.105
136 13.41 0.79 12.4 1.25
152 13.71 0.87 12.48 1.4
170 14.03 0.96 12.57 1.56
190 14.38 1.06 12.67 1.735
210 14.71 1.18 12.79 1.9
230 15.05 1.285 12.895 2.07
252 15.41 1.395 13.005 2.25
279 15.85 1.53 13.14 2.47
305 16.32 1.625 13.235 2.705
336 16.82 1.775 13.385 2.955
W 14 22 13.74 0.23 5 0.335
26 13.91 0.2
