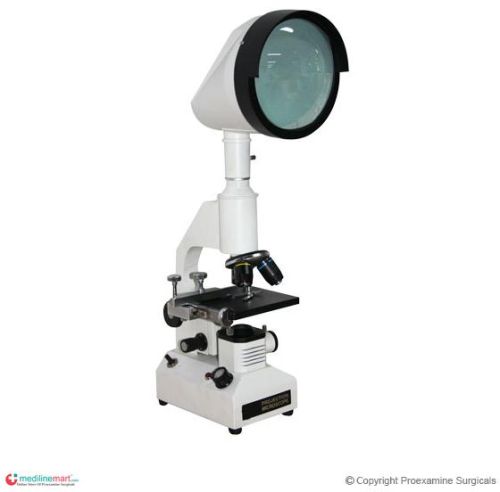

Student Doom Projection Microscope

EyepiecesHuygenian 10x and 15x.
CondenserFixed built-in lamp condenser N.A. 0.65.
Illumination20W Halogen Bulb is provided with solid state variable light control knob, for adjusting the intensity of light, along with ON/OFF Switch. Lamp slots are provided for natural cooling of the illuminator. The Transformer is built in the base operates on 220
StageFixed Square Stage Size 115 x 115mm with graduated detachable mechanical stage for convenient adjustment of Slide manipulation upto 40 x 75mm.
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

EyepiecesHuygenian 10x and 15x.
Screen150mm diameter round Glass Projection Screen is provided for relaxed fatigue-free viewing over long period, can be rotated through 360º on microscope tube.
CondenserFixed built-in lamp condenser N.A. 0.65.
AccessoriesVinyl Cover, Duster, Cleaning Brush and spare bulb.
BodyMonocular Fixed Straight Tube, Mechanical Tube length 160mm.
StandStable and robust, assembled from Aluminium Die-Cast parts.
ObjectivesAchromatic 5x, 10x & 45x SL.
FocussingSeparate knobs are provided for coarse and fine focussing. Coarse adjustment can be made through rack-pinion & fine movement by screw-lever mechanism.
StageFixed Square Stage Size 115 x 115mm with graduated detachable mechanical stage for convenient adjustment of Slide manipulation upto 40 x 75mm.
Safety DeviceUpper stopper for preventing accidental damage to slides.
Illumination20W Halogen Bulb is provided with solid state variable light control knob, for adjusting the intensity of light, along with ON/OFF Switch. Lamp slots are provided for natural cooling of the illuminator. The Transformer is built in the base operates on 220
NosepieceTriple revolving nosepiece with positive centering & click stops.
