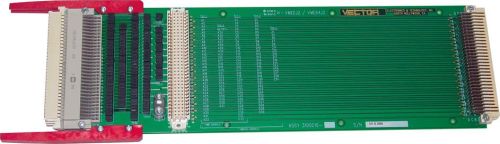

Style Connectors

Board Length11.75" ( 298mm)
SeriesDIN 41612
Board Height3U ( 3.937") ( 100mm )
PCB Thickness0.062" (1.6mm)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Excellent performance with a multi layer design ■ Individual signal tracking with interruption option ■ Voltage & Current measuring facilities ■ Full ground plane ■ Signal pin-out identification silkscreened onto outer PCB layers ■ Jumper Blocks provided to allow signal line interrogation ■ Max. current per contact @ nominal 50o C = 1.75A ■ Controlled impedence, Signal trace shielding ■ Voltage rating 200 RMS or 300 VDC
