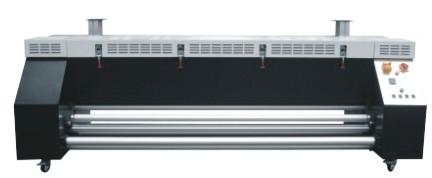

Sublimation Machine, Brand Name : JACLAND

We are offering sublimation system.
easily match with any printers,assemble into all-in-one printer,achieve printing and sublimation at the same time.
print the fabrics with sublimation ink,complete the sublimation by this device.more gorgeous,not faded.
maximum print width up to 3.2m. Easy to operate,fast and evenly,high efficiency.
fixing color with constant temperature,gorgeous colour
various size(cf180/cf260/cf320),apply to printers with different print width.
more choices:universal type and separated type.
control panel,easy to operate.
easy to install:removable linking block, convenient to modify any printer into direct-to-fabric printer.
clean graphic:without complex winding,avoid pipes polluting the graphics.
constant tension:front and rear tension system, keep the fabric in constant tension when printing. Automatic inductive feeding device,ensure fabrics stretched smoothly, avoid fabrics deviating.
reliably sealing:top cover structure, better sealing, completely eliminate the leakage of smoke.
sandwich heating:adopt sandwich heating, achieve heating more evenly and fastly.
evenly sublimation:adopt the advanced thermal contact type coloration, avoid the uneven sublimation by far infrared.
easily oil guide:increase the oil guide device, avoid the lampblack dropping into the fabrics after accumulation.
easy cleaning: built-in heating tube,just wipe the heating plate surface with duster when necessary.
air purification
equip with air purifying box, smoke discharged through the exhaust pipe,after cooling,purification,adsorption,repurification,readsorption,achieve remarkable purifying effects.
parmeters:
model cf18 cf26 cf32
working width 1800mm 2600mm 3200mm
working model heat conduction heat conduction heat conduction
working temperature 100-300ºc 100-300ºc 100-300ºc
working voltage 220-240v 380v 380v
first power 4000w 6000w 6000w
package wooden box wooden box wooden box
