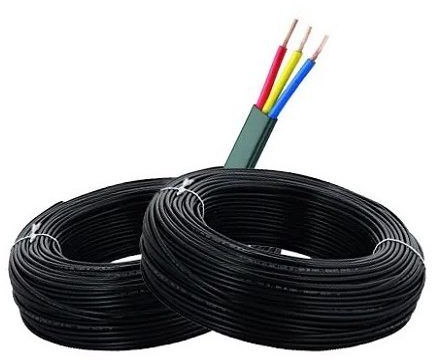

Submersible Cable

Get Latest Price

Current Carrying Capacity & 40 degree C12
Number of Strands32
Max Conductor Resistance at 20 degree C Ohms/km19.5
Nominal Diameter of Wire0.2mm
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

View More Details

Send Enquiry

Company Information

Shyam Cables India Pvt Ltd

Sector 83, Noida, Uttar Pradesh

View Number

Member Since 2 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number of Strands32
Max Conductor Resistance at 20 degree C Ohms/km19.5
Nominal Thickness of Insulation0.6mm
Colours of CoreRed, Yellow & Blue
Sheath Thickness0.9mm
Sheath Overall Dimension10×4.5 mm
Nominal Diameter of Wire0.2mm
Current Carrying Capacity & 40 degree C12

The specifications of three core flat submersible cable. 1.1 KV Grade, Aluminium / Annealed Bare Copper, Flexible- Class-5 /Solid- Class -1/Stranded- Class-2 Conductor As Per IS : 8130, ( PVC Type A/ HR PVC Type C ) Insulated As Per IS : 5831, & Overall PVC Type St-1 Sheathed As Per IS : 5831, Flat Cable Conforming To IS: 694/90, these submersible cables are “ISI Marked”
