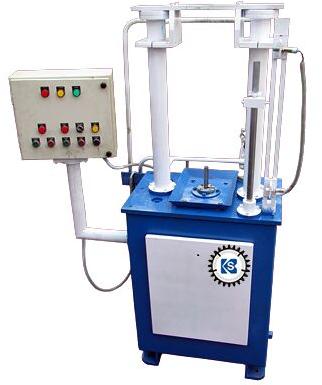

We are offering submersible keyway broaching machine. K.s. Submersible keyway broaching machine is speacially design for the submersible industries, with the model designation utilize a close-grained, high-tensile, one-piece cast iron guide head. Machines with the model designation employ a continuously welded and thermally stressed relieved, fabricated steel guide head. Each is designed and constructed to assure the rigidity and stability required for precise tool tracking. And each model uses hardened and ground alloy steel machine ways to guide the machine pull head. A complete range of machines with standard strokes, tonnages, and cutting seeds is available for just about every broaching need. Special machines are also available for exceptional broaching applications. Whatever your broaching requirement, you’ll get the same commitment to quality and attention to detail in everything we build for you.
highlights:
extremely powerful
most economic
space saving
versatile
semi automatic & fully automatic
specification:
machine stroke – 600mm to 1800mm
key depth-0.5mm to 25mm
· broach force – 0.5 to 50 tons
· cycle time – 44 seconds
· broach tool length –as par job
min. (600mm machine)
max. (1800mm machine)
· cutting speed – up to 20 feetmin. (variable)
· return speed – up to 60 feetmin. (variable)
· hydraulic system –
· coolant system – self contained
· automatic lubrication system – 200 hour capacity before refill
standard features:
fabricated steel frame, normalized prior to machining
· hardened and ground steel, main and handling slide ways
· cast iron handling and main ram slide
· twin cylinder drive
· painted to customer specifications
retriever options:
tool handler type: assists an operator with the loading and unloading of large or heavy broaching tools
· full follower type: same as above but also follows along with the broach during the cut cycle for maximum
