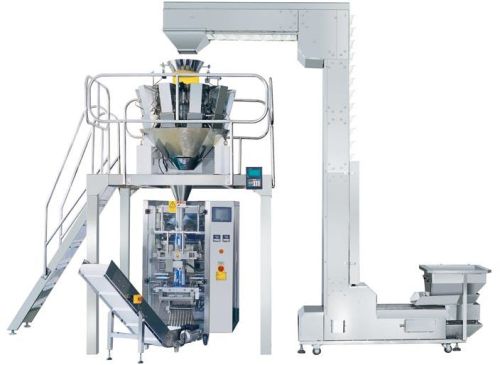

Vertical Sugar Automatic Packing Machine

We are offering sugar automatic packing machine.
packing machine
1.plc control with touch panel-step by step instruction
2.equipped with servo winding system, pneumatic control system.
3.the maximize to improve the whole machine's precision, reliability and stability.
4.use intellectual temperature controller, the high temperature control to ensure the neat sealing .
5.the perfect automatic alarm safety protection, little waste. This machine completes the whole packing procedure of measuring , feeding , bagging , date printing, charging ( exhausting), products out-putting. Counting automatically .
6.bag type:making pillow bag, vertical gusset bag, hanging bag according to customer's different requirements.
ii.application
it's suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .
specification
items
content
packing speed
25-80 bag/min
bag size
(l)50-250mm (w)40-150mm
bag making mode
pillow-type bag, standing bag, punch
range of measuring
max500ml
the maximum width of packing film
320mm
thickness of film
0.04-0.08mm
air consumption
0.3m3/min 0.6mpa
main power/voltage
2.2kw/220v 50-60hz
dimension
l1300×w820×h1400mm
the weight of switchboard
250kg
multihead weigher with ten head
i.main performance and structural features
*select the best combination immediately from diversified weight combinations through computer with perfect combination of high precision and high speed.
*high precision data-type weighing sensor realizes precise weighing.
*liquid crystal screen operating system in multiple languages such as chinese and english, etc.
*ip65 grade water-proof and dust-proof design. It’s clean and sanitary with all stainless steel parts. Full sealed design prevents accumulation of material and facilitates cleaning.
*it can fine the opening and closing speed of hopper door according to the features of items to be weighed,and prevent crushing and blocking of material.
*with powerful digital automatic counting function, it can record the index for each batch of product such as total bag number; pass rate and difference of single bag, etc.
*optional devices: triply balance ball, suction hopper, printing device, tolerance sorting device.
*strong compatibility and more compact structure with it directly installed on the upper part of packing machine.
*fast return for investment by largely saving large quantity of raw material and labor cost.
*net weight: 300kg; gross weight: 370kg
*voltage: 220v; power: 1500w; frequency: 50/60hz; rated current: 9a.
*out package dimension(mm):1400(l)×1130(w)×1120(h):
ii.technical parameter
type
ten-hopper computer combination scale
range of single weighing
10-1000g
maximum weighing quality
1000g
range of weighing precision
0.3-1.5g
maximum weighing speed
60 bags /minute
hopper capacity
1300ml
hopper type
bi-row hopper without memory
driving
step motor
preset number for product
50 kinds
