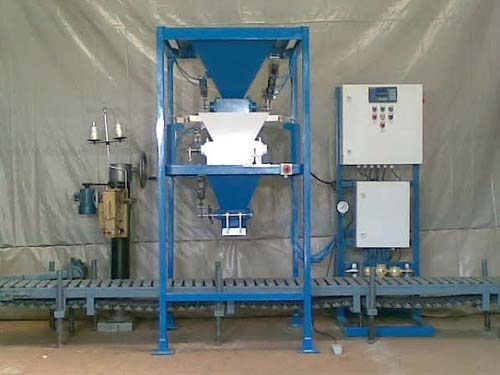

Sugar Packing Machine

We are a distinguished Manufacturer, Supplier and Exporter of Sugar Packing Machines.  The Packing Machine offered is a gravity feed (Flap-gate feeder) packer specifically for granular products like sugar, chemicals, plastic, sponge iron, food grains, etc. We are capable of delivering bulk orders of the Machines within the allocated time.
Details :

• Net weigher has high discharge rate with very high accuracy on account of 3 variable feeding speeds
• Machine is equipped with re dispensing feature
• Special lining of hopper to suit material characteristics (Corrosive / abrasive etc.) can be provided

Features :

• Micro Processor based stationary
• Fully automatic Filling & Weighing.
• Output of the machine is 15 tons/hour/spout.
• Digital weighing system with indicator.
• Latest technology and user friendly designs.
• Same machine can be used for packing cement in jute, HDPE (woven), or paper bags (laminated).
• Available in 1 to 4 filling heads in stationary model.
• Easy availability of spares and after sales service.

Operation of the Machine :

• The Machine to be fitted below the Storage Hopper. Material flows into the damper controlled by Pneumatic Cylinder
• The machine will hold bag below which the box or drum has to be put. After completion of filling, the bag will automatically drop in to below box or drum
• This machine is a two stage feeding type
• On initiating the system both the flap opens & material falls into the weighing hopper. As soon as the 90 % of the weight is reached one flap closes & fine feed starts till the target weight is reached the 2nd flap closes, stopping further fall of material into weighing hopper
• The Butterfly Valve provided below the weighing hopper opens & the material falls into the bag through the open mouth bag holder
• A Slat Conveyor will be placed below the packing machine which will carry the filled bags
