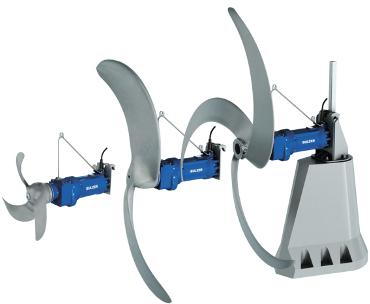

Sulzer ABS Flow Booster

The Sulzer abs flow booster XSB is designed as a compact, water pressure-tight unit including propeller and integrally lockable coupling system. It is equipped with an axially operating 3-blade propellers with very good self-cleaning effect for vibration-free operation. The propellers are designed to achieve high thrusts and therefore, a high flow capacity in axial direction. The patented solids deflection ring protects the mechanical seal from damage by ingress of solids or fibrous matter.  All bearings are lubricated-for-life and maintenance-free, with a calculated life time of more than 100,000 h.

• Maximum propeller dia.: 2750 mm
• Range: XSB 900-2750
• Size range: 1-7.5 kW
• Material of construction (with options): motor housing - EN-GJS-400; motor shaft - 1.0060 (ST 60-2); propeller - composite glass (glass fibre, resin, gel coat); propeller shaft - 1.7225 fully encapsulated (42CrMo4)
• Flow range: up to 22320 m3/hr

• Providing a flow pattern in large tanks and open waters for mixing and stirring
• Wastewater treatment plants and industrial applications

• Fully-lockable coupling system
• High-efficiency IE3 motors
• Mechanical seal protected by a solids deflection ring
• Seal monitoring using multiple sensors
• Thermo-Control System (TCS) provides timely warnings and auto switch-off
