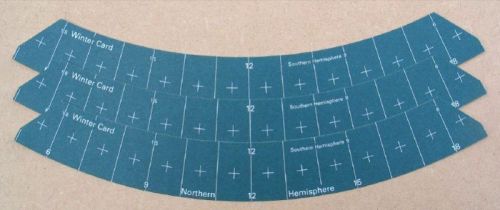

Lew Sun Shine Recorder Card, Packaging Type : Wooden Box

This recorder consists essentially of a glass sphere of 96 mm diameter mounted concentrially in a section of a spherical metal bowl, the diameter of which is such that the sun`s tays are focussed sharply on a card held in the grooves, in the bowl. Three overlapping pairs of grooves are provided in the bowl to taken up cards suitable for the different seasons of the year.

The sphere is made of uniform and well annealed colourless glass and is carefully ground and polished with great precision.

Installation Following manipulations are necessary when installing the recorder: a) The base should be levelled. b) The bowl should be so adjusted that the centre line of the equinoctial card lies in the celestial equator (the scale line of latitude marked on the bowl facilitates this). c) The vertical plane through the centre of the sphere and the noon mark on the bowl must be in the place of the meridian. If the instrument is correctly adjusted the image will fall on the bowl or card and the traces of the image will be parallel to the central lines of the cards, during the whole year. Local apparent time is obtained by subtracing the equation for time from local mean time. Accurate installation is greatly facilitated by means of the levelling plate (cover picture), which is provided with three oblong holes for the purposes of fastening it. Adjustment with in the meridian is effected by turning the levelling plate and simultaneously watching the trace of the image on the card. The base plate of the sunshine recorder rests on three points in three corresponding slots of the levelling plate. The three points are formed by a fixed pin and two forcing screws. With the aid of these screws and of an air level fixed on the base plate, this latter is adjusted as to the horizontal plane. The base plate by tightening knurled screw. For an occasional cleaning of the instrument or for thawing-off coating of ice, it can very easily be taken off after having loosened the knurled one screw. When being replaced, the instrument will always occupy exactly the same position as before. There is no need for readjustment.

The sunshine recorders are equipped with an electric heating device, which eliminates the formation of ice, snow, and hoar-frost, on the glass sphere. To this end the cylindric socle arranged on the graduated arc, on which the glass sphere is resting, is provided with a hollow by turning, into which the heating element is fitted. This is fed via the connected cable of 20 metres length with d.c. or a.c. of 24 volts and has a heating capacity off appr. 30 watts. Transmission of the heat from the metal socle to the glass sphere suffices to keep this latter free from coatings of ice, snow, hoarfrost, etc., also under severe climatic conditions. If required, the heating device is to be ordered together with the sunshine recorder, as subsequent mounting of the device is impossible without having the instrument sent back to the factory.
