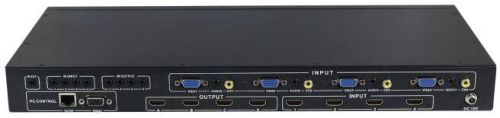

hdv1204f is a high performance switcher, it has 4*4 mixed input, 4 mixed input which supports digitalanalog video signal; supports seamless switching output.
Seamless switching modes includes: fast switch, fade in-out, scrolling window etc., totally 16 types. This switcher adopts advanced digital technology, it can achieve scaler function to reach multiple video format output together and seamless switching. And it supports ir switcher function and multiple control methods. In addition, it supports multi-picture video and video wall function.
There are 4 types of multi-picture modes, and allows 4 x magnification of any input signal. It supports different signal source combined freely to switch as the output.
product function
1) support hmid 1.3, hdcp 1.3 and dvi 1.0;
2) support hdmi, vga, cv input;
3) support resolution:
hdmi: 480i to 1080p @60hz
vga: 1920*1080p@60hz, 1360*768p@60hz, 1280*1024p@60hz, 1024*768p@60hz, 1280*720p@60hz, 1280*768p@60hz, 800*600@60hz, 640*480p@60hz
cv: pal, ntsc3.58, ntsc4.43, secam, palm, paln etc.
4) 16 types seamless switching result output;
5) support video wall picture splicing;
6) support 4 pictures cutting and splicing;
7) automatically picture adjustment;
8) intelligent edid management;
9) rs232 and network port upgrade
10) supports rs232, ir, front panel and tcpip control.
