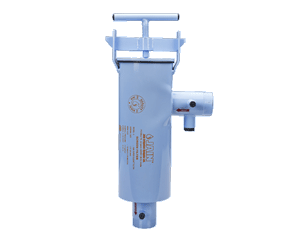

Special Filter Design Tangential inlet protects the screen from direct impact of sharp/angular particles Unique Smart Clean Element Equipped with Smart–Clean, Unique filtering element, to assure....
Special Filter Design Tangential inlet protects the screen from direct impact of sharp/angular particles
Unique Smart Clean Element Equipped with Smart–Clean, Unique filtering element, to assure high performance and effective filtration.
Easy for Maintenance Strong and smooth opening and closing for cleaning screen element
Standard Epoxy Coating for Protection from Corrosion Coated with more than 70 micron thick light blue coloured epoxy powder from both inside and outside surface for protection against corrosion and weather effects
Various Connection Options Available Threaded connection, Flanged connection or Easy Fix™ connection available
Draining Facility Available Slant drain valve position at the bottom facilitates effective flushing
Mild steel Construction
And ‘L’ shaped body allows installation in angular fashion.
Available in standard mesh of 100 micron size. (other mesh sizes available On demand).
Flow direction from outside of the element to inside (Out to In).
Maximum operating pressure 6 kg/cm² (142 psi).
Epoxy coated stand for support and proper installation of the filter available as optional.
On demand, Super–Clean filter can also be supplied with automatic flushing option.
Super–Clean filter can also be supplied in stainless steel body.
