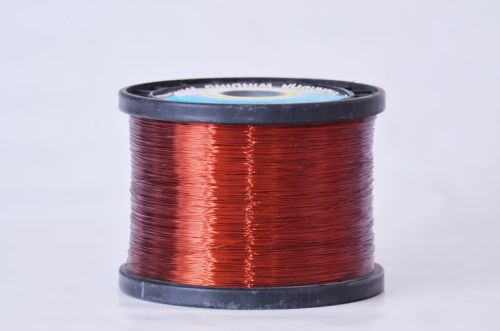

Super Enameled Round Copper Wire

Listing ID #325371

Get Latest Price

Supply Type Manufacturer, Exporter

Preferred Buyer From : All over the world

View More Details

Product Details

Our product range encompasses super enameled rectangular copper wires that cater to various industrial applications. Manufactured using quality raw material, super enameled rectangular copper wire (strip) offered by us finds usage in h.t motors and coils with high magnetic field. We are also capable of offering full square dimensions in strips that are demanded for special applications.
other details:
corrosion resistant
long functional life
can also be offered in customised specifications
insulation type poly vinyl acetal polyester solderable polyurethane
temp class 105oc 130oc 130oc
sizes .190mm to 5.000mm .190mm to 5.000mm .190mm to 5.000mm
reference is 13730 (part-1) : 1993 is 13730 (part-34) : 1993 is 13730 (part-4) : 1994
dimensions as per iec 317 - 0 -1 as per iec 317 - 0 -1 as per iec 317 - 0 -1
electrical resistance as per iec 317 - 0 -1 as per iec 317 - 0 -1 as per iec 317 - 0 -1
elongation as per iec 317 - 0 -1 as per iec 317 - 0 -1 as per iec 317 - 0 -1
springiness as per iec 317 - 0 -1 as per iec 317 - 0 -1 as per iec 317 - 0 -1
flexibility & adherence as per iec 317 - 0 -1 k 175 mm as per iec 317 - 0 -1 k 150 mm as per iec 317 - 0 -1 k 150 mm
heat shock min. Temp. 155oc as per iec 317 - 0 - 1 min. Temp. 155oc as per iec 317 - 0 - 1 min. Temp. 155oc as per iec 317 - 0 - 1
cut through no failure will occur within 2 min. At 170oc no failure will occur within 2 min. At 240oc no failure will occur within 2 min. At170oc
resistance to abrasion
resistance to solvents as per iec 317 - 0 - 1 as per iec 317 - 0 - 1 as per iec 317 - 0 - 1

Company Details

Established in the year 1989, we, 'Vidarbha Winding Wires Ltd.', are one of the renowned manufacturers, wholesalers, distributors and exporters of a wide range of Aluminium, Copper & Strips and Wires. Our organisation is a part of the MSA Group of Companies, which was initially engaged in manufacturing only Enameled Copper Wire. With the passage of time, we started offering various products and services after interacting with our customers and understanding their requirements. Our products are widely appreciated in the market for its corrosion resistance, capability to withstand mechanical & thermal shocks, long functional life, high thermal conductivity and dimensional accuracy. We are recognized for our quality & reliability, . We have a sophisticated infrastructure, managed by a team of professionals. With the constant efforts of our workforce, we have been able to offer a diverse range of products, which no other company in Central India offers. Our in-house R&D facility has helped us in meeting the exact requirements of different industries & sectors in an efficient manner. The range of product is widely used in electric motors, electric transformers, telecommunication equipment UPS and various other applications. We have a well-established distributor & dealer network, which enables us to deliver all our consignments within the set time frame. For us and Quality Assurance is very important and we ensure that our clients receive products that are the benchmark of excellence. As per there requirement With the excellent managerial skills of our CEO, "Mr. Rohit Agrawal', we have been able to experience success in all our endeavors. He has been a source of motivation and guidance for all the people associated with our organization.
