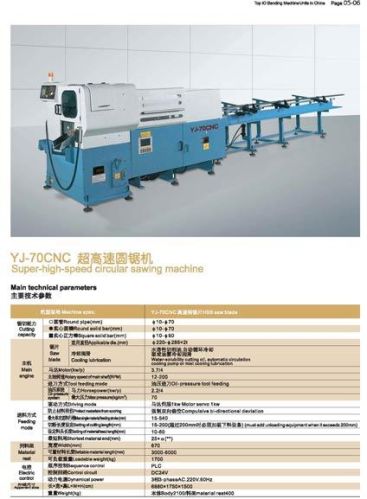

Super High Speed Circulation Sawing Machine

We are offering super-high-speed circulation sawing machine.
Machine spec. yj-70cnc hss saw blade
cutting capacity round pipe(mm) φ10-φ70
round solid bar(mm) φ10-φ70
square solid bar(mm) φ10-φ60
main engine saw blade applicable dia.(mm) φ220-φ285x2t
cooling lubrication water-solubility cutting oil,automatic circulation cooling pump or mist cooling lubrication
motor(kwp) 3.74
rotary speed of main shaft(rpm) 12-200
tool feeding mode oil-pressure tool feeding
oil-pressure
stystem horsepower 2.24
max pressure(kgcm²) 70
feeding mode driving mode motor servo 1kw
procect material from scratching
complusive bi-directional deviation
max single material feeding stroke(mm) 15-540
setting of cutting length(mm) 15-200(must add unloading equipment when
it exceeds 200mm)
setting of material head length(mm) 10-60
shortest material end(mm) 25+α(**)
material rest width(mm) 670
settable material length(mm) 3000-6000
loadable weight(kg) 1700
electric control sequence control plc
control circuit dc24v
dynamical power 3-phase ac.220v.60hz
appearance size lxwxh(mm) 6680x1750x1500
weight(kg) body2100material rest400
