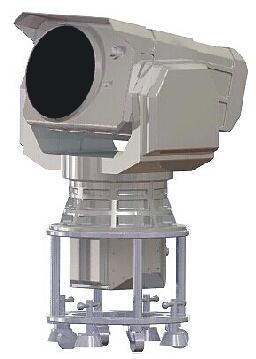

Super-long Range Electro-optic Search & Tracking System

We are offering super-long range electro-optic search & tracking system.
Application
applied to different moving carriers(such as aircraft, vessel and ground equipment ) , have functions of target search, observation and tracking, collimation control, navigation and early warning.
Technical specification
stabilization accuracy ≤0.15mrad(1σ)
angular velocity(max) azimuth≥50°s, pitch≥50°s
auto tracking state target angular report accuracy random error ≤0.06mrad(1σ)
aiming line pointing stabilization accuracy random error ≤0.3mrad(1σ)
video tracking unit specification
minimum target size 3x3 pixel measurement deviation accuracy 1 line
data rate 50hz,100hz video output standard ccir video
ir thermal imaging camera
detector 640x512 cooled hgcdtd fpa
pitch 15x15μm
spectral band 3.7μm ~4.8μm
fov 0.5°x 0.4°~ 5°x 4°(continuous focus)
focus to clear range:10m ~ ∞
operating range
condition:
visibility≥15km，temperature：20℃±5℃，relative humidity：70%±5%，temperature difference between target and background≥5℃.
ship aircraft vehicle
detection:25km detection:30km detection:7km
recognition:15km recognition: 10km recognition:5km
feature
★high accuracy ir thermal continuous focusing optical system with complex variable control system , ensure the clear image and stable axis in the range of 110mm～1100mm.
★utilized multi-axis stabilized platform, integrated with high accuracy gyro and servo control system, ensure the system stabilization tracking accuracy.
★ 640x512 cooled fpa hgcdte detector
★ military level parts, high reliability and long lifetime.
★ full-sealed waterproof, optical-mechanical-electrical integrative design and good quivery resistance capability.
