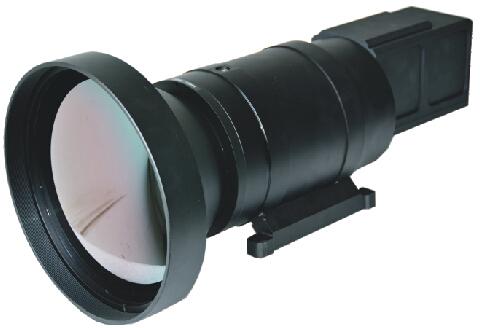

Super-long Range Observation Cooled Thermal Imaging Camera

We are offering super-long range observation cooled thermal imaging camera.
Application
provide high-performance and reliable cooled thermal imaging camera for long range target detection, recognition and warning system in the fields of military industry, aerospace, aviation, border & coast defense and urban monitoring.
feature
★fully sealed waterproof or optical-mechanical integrated design, the production is designed as aircraft-grade environmental adaptability requirement.
★cooled fpa hgcdte microbolometer, low noise and high sensitivity.
★fpga intelligent image processing platform, high frame frequency and clear image.
★long focus and dual fields optical system, search and prewarning in the wide area and recognization and tracking in long range.
★long focus, large area array and small pixel make system with high ifov
★communication protocol is designed according to system requirement.
Technical specification
detector cooled hgcdte fpa pixel 640x512
pitch 15μm spectral band 3.7μm~4.8μm
frame frequency 25hz ,50hz, 100hz starting time ≤6min(20℃)，≤8min（50℃）
integral time adjustable video output analog pn, digital camera link
power input dc+24v(dc8~42v optional)
average dissipation ≤25w
optical focus 1100~110continuous zoom, 60015022, 400100
fov
0.5°x 0.4°~ 5.0°x 4.0°(1100~110)
8°（30075）
0.9°x 0.7°3.7°x 2.9° 24.6°x 9.8°（60015022）
1.4°x 1.1° 5.5°x 4.4°(400100)
netd camera≤25mk(f2)
operating temperature -40℃ ~ +60℃ storage temperature： -50℃ ~ +70℃
communication interface rs232rs422 open protocol
weight 20.5kg(1100~110continuous zooming);14.8kg(60015022 tri-fields);
10.5kg(400100 dual fields)
