Superfine Ball Mill With High Performance

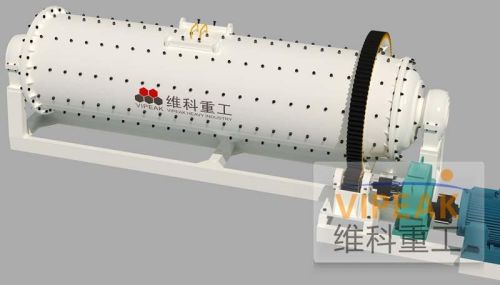

MQX series superfine ball mill
MQX series superfine ball mill is a kind of new type and high-efficient powder and superfine powder processing machinery which is used for grinding the medium and low-hard material that Moh's hardness is below 6, humidity is less than 8%, and non-flammable non-explosive minerals, such as calcite, cretaceous, caoline, limestone, bentonite, talcum, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, Attapulgite clay, rectorite, diatomite, barite and so on.The classified powder could be adjusted between 300 and 2500mesh. With the classifier, the fineness will be better and could meet the requirements from different customers.
Working principle:
After washed and dried(humidity less than 1%), the raw mineral was crushed to less than 2mm by jaw crusher and hammer crusher, enter the hopper by bucket elevator, then to superfine ball mill through belt conveying system. The ball mill crush, shatter and grind the stone by the rotation energy, and then the powder enter the classifier for the first classification, most of the big particle was separated, and the fine powder enters turbine classification level area for second classification. After twice classifications, qualified fine powder was collected by powder collectors, while the coarse powder return to ball mill for secondary crushing and grinding.
