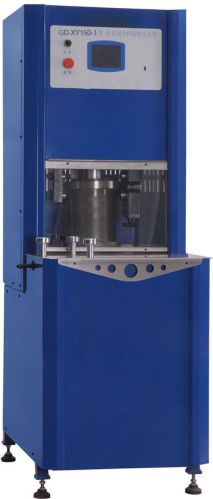

Superpave Gyratory Compactor Aashto T 312-04

We are offering superpave gyratory compactor.
Purpose:
gd-xy150 superpave gyratory compactor is in accord with requirements of superpave specification of fhwa. Its compaction degree meets requirements of aashto r35 and aashto t 312-04 .gd-xy150 superpave gyratory compactor is an instrument to simulate actual road material volume and property. It is a shaping machine to make cylindrical test sample of hot-mix bituminous mixture by kneading methods under a constant pressure, at a fixed compaction angle, and a fixed compaction speed.
technical parameters
1. Pressure range: 100 to 1000 kpa; can be continuously adjusted;
2. Pressure accuracy:
(1) less than ±60kpa (compaction times from 1 to 5);
(2) less than ±18kpa (compaction times more than 5);
3. Rotation times:
(1) positive rotation (as per the preset compaction angle): 0~1000 times;
(2) negative rotation (compaction angle is 0°): 0~500 times;
4. Range of compaction angle: 0.5°~2.0°, the increment is 0.01° (it has been calibrated at 1.25° before leaving factory);
5. Accuracy of compaction angle: less than 0.01°;
6. Compaction displacement range: 0~300mm;
7. Accuracy of compaction displacement: less than 0.01mm;
8. Rotation speed: 30±0.5 rpm;
9. Rated speed of motor: 1800 rpm;
10. Total height: 190 cm;
11. Weight: 370 kg;
12. Shipment weight: 410 kg;
13. Weight of mold: 7.4 kg
