Surface Grinder Machine

Listing ID #4188391

Ramanna offers a quality line of Manual Hand Feed Surface Grinders Machine with sturdy construction, robust design, and high durability. These reliable machines have small footprints and are affordable and easy to operate, with little heat distortion and negligible noise.
Types Available:- Linear Slide Guideway Options - Oil Dip Or Ball type In oil type machine the magnetic slide on which the magnetic chuck is mounted moves on a V & flat guides which are permanently dipped in an oil tray. As for ball type machine the magnetic slide is guided by a set of roller guides using ball strips.

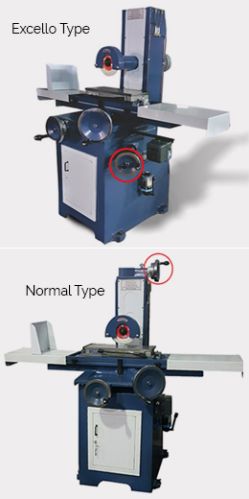

Usage - Oil dip is better for Tool rooms while Ball type is better for production purposes. Different Models Available - Normal orExcello Type Firstly the difference in excello type and normal machine is - the position of the wheel used to provide vertical feed to the machines. For small size machine the vertical feed wheel is on the top, but as the size of the machine increase the operator can’t reach the vertical feed wheel without moving so in excello type the position of the vertical feed wheel is down along with the other wheels. Moreover in excello type machines the length of vertical slide is more so a workpiece with maximum height of 13 inch can be grinded while in normal only 9 inch is possible.
