surface grinding machine

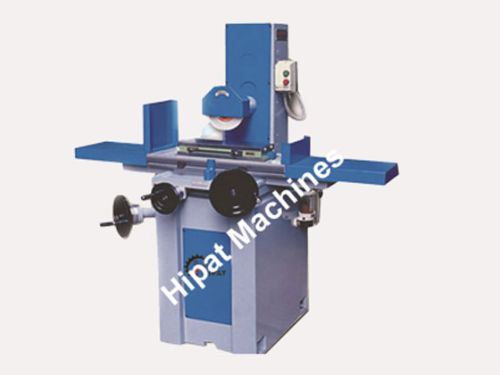

Surface Grinding Machine

Listing ID #3850775

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

Indroduction:These products are the result of our long year of experience in the manufacturing of precision horizontal surface gridingMachines which require power design careful selection of....
View More Details
Send Enquiry

Company Information

Hipat Machine Tools
G. T. Road, Ludhiana, Punjab
View Number
  • Member Since 8 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

Indroduction:
These products are the result of our long year of experience in the manufacturing of precision horizontal surface griding
Machines which require power design careful selection of materials, proper manufacturing techniques and craftsmanship.

Features

All main parts such as column, wheel head, table, saddle and machine base are provided with heavy & study design to give higher rigidity of the machine.
All Hand wheel, levers, Switches are conveniently grouped at the front of the machine for convenient operation of the machine.
All sides ways and electrical switch box are sealed from dust, chips and coolant for easy maintenance and longer life of the machine.
Hydraulic power unit and coolant tank are separated from the machine.
Wheel, spindle rotates in greas packed angular contact rolling element bearing and directly driven by the motor through a flexible coupling.
Independent lubrication system to the guide ways of the table and grinding wheel head ( in hydraulic model only



Surface Grinding Machine
DESCRIPTION UNITS PSG-200 PSG-200 PSG-300
TABLE
WORKING SURFACE MM 200*600 250*600 300*600
LONGITUDINAL TRAVERSE MM 530 630 630
TABLE TRAVERSE PER REV. OF HAND WHEEL MM 100 100 100
NO OF T-Slots No. 1 2 2
CROSS FEED
TOTAL CROSS TRAVERSE MM 220 270 320
MOVEMENT PER REV OF HAND WHEEL MM 5 5 5
HAND WHEEL GRADUATION MM 0.01 0.01 0.01
FINE FEED GRADUATION MM 0.005 0.005 0.005
WHEEL HEAD
VERTICAL MOVEMENT MM 310 310 330
SIZE OF GRINDING WHEEL MM 200*13*31.75 200*13*31.75 200*20*31.75
SPEED OF GRINDING WHEEL RPM 2880 2880 2880
CAPACITY BETWEEN WHEEL & TABLE MM 275 275 275
WHEEL FEED
MOVEMENT PER REV. OF HAND WHEEL MM 1 1 1
HAND WHEEL GRADUATION MM 0.01 0.01 0.01
FINE FEED GRADUATION MM 0.005 0.005 0.005
ELECTRICALS
WHEEL HEAD MOTOR k.w. 0.75 0.75 1.1
Table feed motor k.w. 0.75 0.75 0.75
Hydraulic pump motor k.w. 0.75 1.5 1.5
Coolant pump motor k.w. 0.10 0.10 0.10
Auto lubrication motor k.w. 0.09 0.09 0.09
FLOOR SPACE REQUIRED
Length Width MM 1900*1420 2185*1225 2450*650
Length Width Height of machine MM 1450*1140*1575 1575*1245*1575 1850*1350*1575
Length Width height of machine MM 1750*1300*1800 1750*1300*1800 1850*1400*1800

OPTIONAL ACCESSORIES STANDARD ACCESSORIES APPLICATIONS
1. Machine lamp 1. Wheel flange 1. Automobiles
2. Diamond dresser 2. Flange puller 2. Die & Mould Manufacturers
3. Grinding hand tools 3. Two Truing Devices 3. Aerospace
4. Spindle locking spanner 4. Coolant Pump with Tank 4. Medical Equipment
5. Clamp bolts & table guards 5. Grinding Wheel Puller/td>



 5. Textile Machinery
6. Table mounted wheel dressing bock 6. Grinding Wheel Pulley Pulle 6. Diamond & Jewellery Industries
7. Antifrication material for gudieways   7. Allied Machinery
    8. Plastic Processing Machinery
    9. Defence
