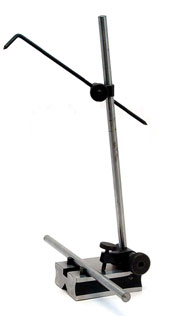

SURFACE MARKING BLOCK

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Basic tool for machinist and toolmakers for accurately scribing lines, transferring measurements and probing during inspection work. Polished and hardened Steel base with double ended scriber. Polished and hardened Steel base with double ended scriber. Front Recessed for depressing Spindle below base level. Has fine Adjustment for precise angular movement. Base has 2 retractable Pins to set against edge of a Surface plate. 1/4" (6.35 mm) hole drilled on adjustment knob for positioning a dial indicator.

Company Information

Member Since 19 Years
Nature of Business Manufacturer
Year of Establishment 1980

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Article No :- 171

Cat. No.	Base Dimension L / W / H		Length of Spindle		Diameter of Spindle
Cat. No.	INCH	MM	INCH	MM	INCH	MM
SMB-401	2-3/16 x 1-5/8 x ¾	55 x 40 x 20	4 & 7	100 & 175	1/4	6.35
SMB-402	3-1/4 x 2-1/2 x 1	82 x 63 x 25	9 & 12	225 & 300	3/8	9.5
SMB-403	4 x 3-1/2 x 1-1/8	100 x 90 x 30	12 & 18	300 & 450	3/8	9.5
SMB-404	3-1/4 x 2-1/2 x 1	82 x 63 x 25	9	225	3/8	9.5
SMB-405	3-1/4 x 2-1/2 x 1	82 x 63 x 25	12	300	3/8	9.5
