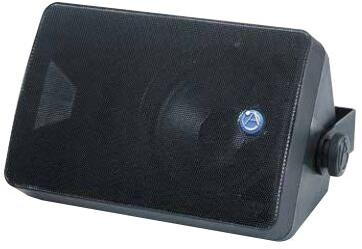

Surface Mount Loudspeaker

Features
• Compact, 2-way loudspeaker systems for exceptional performance in
music and sound reinforcement systems
• Weather-resistant construction for year-round indoor or outdoor use
• UV-resistant-talc-impregnated-polypropylene injection molded
enclosure, powder coated aluminum grilles and all brass hardware
inserts
• Conforms to 100HR salt spray test per ASTM B117
• Color matched heavy-duty zinc chromate plated and powder coated
“C” bracket (included)
• Highly efficient 51
⁄4" polypropylene woofer
• 1" FerroFluid™ cooled dome tweeter
• Atlas Sound TRX WAVEGUIDE™ Provides an Accurate, Constant
Directivity High Frequency Coverage
• Atlas Sound POLYGUARD™ high frequency circuit diverts damaging
transient signals to protect the tweeter
• All 1
⁄4"-20 hardware inserts allow easy integration of “off-the-shelf”
security hardware
• Screwdriver adjustable 30-Watt 70.7V 100V Transformer for
distributed sound applications. (Includes Transformer bypass setting
for direct coupled 8Ω operation)
• OMNIMOUNT™ 10 Series compatible
• Available in black or white
Applications
Use surface-mount Atlas Sound SM52T-B and SM52T-WH loudspeaker
systems for commercial, professional and residential applications or
where high-fidelity sound and weather-resistance are desired. Full-range
frequency response makes these systems ideal for indoor or outdoor
installation, in monaural and stereo foreground or background music
systems, and for applications in boutiquesshops, restaurantscafes,
leisure, recreationsports centers, and houses of worship. Multi-position,
C-shaped mounting bracket and rugged construction provide optimum
installation flexibility and assurance of long-term service.
General Description
Environment-resistant SM Series loudspeaker systems offer quality
sound reproduction and contemporary styling in a compact enclosure.
System components consist of a highly efficient woofer section and
Ferrofluid cooled, titanium dome high frequency device. Vocal and
musical clarity is optimized by the mathematically conceived, advanced
design of the Atlas Sound TRX Control WaveGuide™ high frequency
director. This design provides smooth, even sound coverage (90˚H x
90˚V). The high frequency section is symmetrical, for equal coverage in
both vertical and horizontal cabinet mounting positions. High frequency
component protection is provided by the Atlas Sound PolyGuard™
protection circuit. The SM52T includes an internally mounted 30 Watt
70.7V100V line matching transformer with screwdriver adjustable tap
selection for use in distributed sound applications. The tap selection
switch also includes a transformer bypass setting for direct coupled 8Ω
operation
