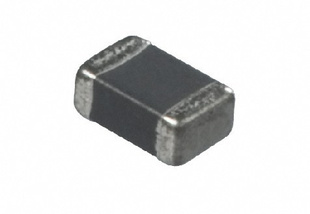

Surface Mount Ntc Thermistor

We are offering surface mount ntc thermistor.
Introduction：
ntc thermistor is a ceramic semiconducting element made of exorbitant oxides material. The feature is the resistance changes according to the ambient temperature. Namely, their resistance declines with the rising of ambient temperature at a determinant measuring power. With this feature ntc thermistor and temperature sensor can be applied in the situation of temperature compensation, measurement and control and surge current protection.
features：
1.small size, smd type
2.no lead, ideal for high density smd installation
3.superior solder-ability and resistance to soldering heat
4.applied under wave-soldering and reflow-soldering
application:
1.temperature compensation for mobile devices
2.temperature sensing for rechargeable batteries
3.temperature sensing for cpu devices
4.temperature sensing in other circuits
size structure:
0402,0603,0805,1206
electrical parameters:
1.b value at 2585℃ : 3435~4300
2.resistance at 25℃: 10kω~560kω
3.resistance allowable tolerance: ±1%，±2%，±3%，±5%, ±10%
