Contact SupplierLittelfuse Reed Switches MDSM-10 datasheet
Order Sample

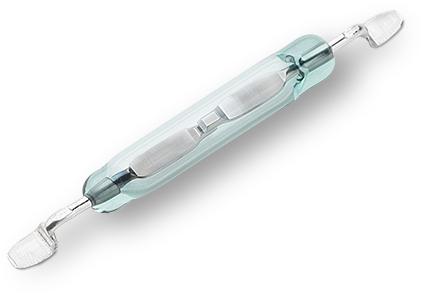

A sub-miniature, surface mount, normally open switch with a 10.16mm long x 1.80mm diameter (0.400" x 0.071") glass envelope. Capable of switching 200Vdc at 10W. Available sensitivity range of 10-25 AT. High insulation resistance of 1012 ohms minimum and low contact resistance of less than 120 milliohms. Available in surface mount version (MDSR-10). Ideally suited for reed relay applications, security, metering, limit sensing and telephone off-hook applications. Available in bulk packaging or on tape and reel.
Features:Surface mount normally open switch capable of switching 200Vdc or 0.5A at up to 10 Watts
Available sensitivity range of 10-25 AT
Benefits:
Hermetically sealed switch contacts are not affected by and have no effect on their external environment
Zero operating power required for contact closure
Excellent for switching micro-controller logic level loads
Applications:
Position sensing
Level sensing
Security
Metering
Home appliances
