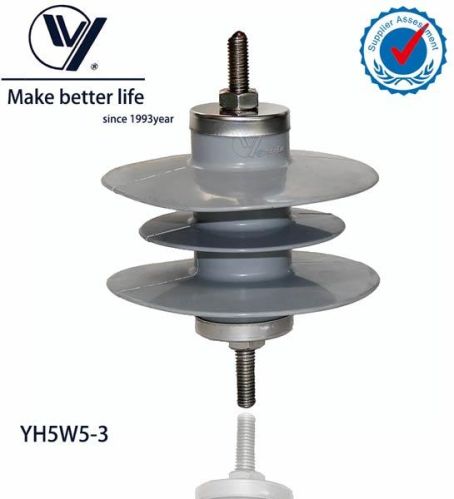

Silicone Rubber Surge Arrester, Brand Name : YongDe

We are offering surge arrester-yh5w5. Type yh5w5-38.1
rated voltage---------kv 3 410µs high current impulse ka 65
mocv ----------------kv 2.55 lightning impulse withstand kv 45
nominal current-------kv 5 power frequency voltage withstand(drywet)kv 10
residual voltage of steep impulse----at 5ka(kv) 8.8 0.1s tov--------------kv 3.6
820µs residual voltage of lightning impulse current kv(peak value)-----at 5ka(kv) 8.1 1s tov----------------kv 3.45
residual voltage of switching impulse current kv (peak value)----at 1ka (kv) 10s tov---------------kv 3.3
1ma d.c reference voltage (kv) 4.24 1200s tov-------------kv 3
line discharge level 1 creepage distance ----mm 272
2ms long duration impulse current a 250 material employed in series non-linear resistor zinc oxide
about us:
our company is founded in 1993year, with advanced technology and talents. To provide customers with the most satisfactory product quality and thoughtful service. We hope to develop together with you hand in hand,and make both of us win-win. I hope the majority of buyers can come visit and tour company, your satisfaction is our greatest pursuit. Production
lead time & quality guarantee:
sample deliery time is about 2-3days
big order quantity is about 30-35 days after we receive 30%~50% deposit from you.
Generally,it takes 4 working days by dhlups ,and 7-10days by ems
12months' warranty period. 20years’ quality guarantee period
with iso9001:2008approvals.
customer services:
our salesmen will reply your inquiry within 24 hours. Any order is welcome. If you like to be our agent in your country, we can give you any support on the technique & other aspects.
