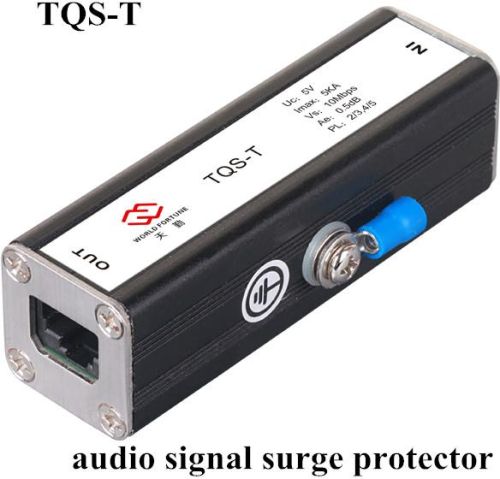

Surge Arresters

we offer surge arresters for audio signal. 1. product features
 multi stage surge protection
 low insertion loss
 quick response
 high current capacity
 low limited voltage
2. applications
 lightning protection of audio signal or digital carrier equipments
 lightning protection of over current of telephone, fax machine, modem, switch adsl, isdn
 fm receivers
 access control systems
 monitoring systems
3. technical data
model tqs-t
nominal operating voltage un 5v
nominal discharge current in (820μs) 3ka
maximum discharge current imax (820μs) 5ka
protection level up (820μs,3ka） ≤20v
response time ta ≤1ns
transmission rate 10mbps
insertion loss ≤0.5db
protection route 1
dimension 85*25*25mm
connector type rj11
weight 78g
mounting type series connected before the protected equipments
housing material aluminum
index of protection ip20
operating environment temperature:-40—+85℃ humidity: ≤95%
warranty five-year warranty, three-year replacement
related items tqs-t-16, tqs-ty; tqs-t110(distributing frame)
