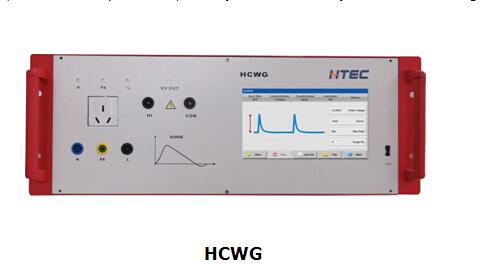

Surge Generator, Brand Name : HTEC, Packaging Type : WHITE+RED

We are offering emc test system--surge generator.
The surge test of iec 61000-4-5 simulates high energy but relatively slow transient overvoltages on power lines and long signal lines, most commonly caused by lightning strikes in the vicinity of the line.
Hcwg test system meets all your current and future surge testing requirements ！ a modular expandable system that grows with your application needs, and various test accessories, including single & three phase cdn (max current up to 100a) and symmetrical & asymmetrical data signal line cdn are available .
features & benefits
max output voltage 5.0kv7.0kv10.0kv
combination wave: 1.2μs50μs（2ω）
single phase16a & three phase 3250100a cdn, full automatic control
data line cdn ，according to iec 61000-4-5，drawing 11-14
circuit measurement of peak voltage and current
telecom wave 10μs700μs is expandable（15ω&40ω）
high quality components，small in size & light weight
color touch screen interface，easy to operate
according to latest iec&gb standards
compliance and certified test system
standards
iec en 61000-4-5
gbt17626.5
ansi c62.41
itu k.20
ituk.41
ituk.45
gbt 17215.211
eniec 60255-22-5
