Surge Protection Device For IP Camera Outdoor

We are offering surge protection device 1. product features
 low insertion loss
 quick response
 multi. Protection circuits, gas-tube + tvs technology
 dual protection in common mode and differential mode
 tvs array technology, low capacitance
 multi-strike capability
 comes with multi-channel models
2. applications
 lightning protection of networkip cameras
 security and monitor system
3. technical data

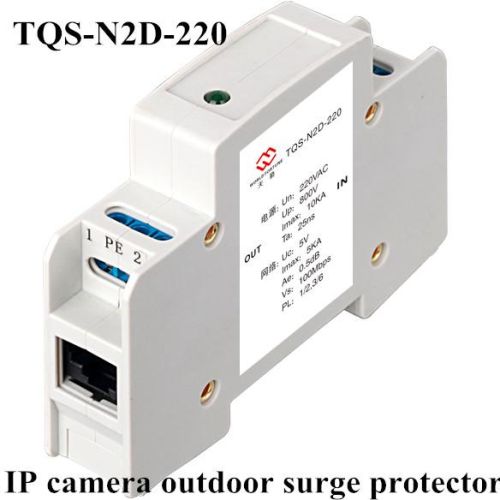

model tqs-n2d-220
network nominal operating voltage un 5v
nominal discharge current in (820μs) 3ka
maximum discharge current imax (820μs) 5ka
protection level up (820μs,3ka） ≤20v
response time ta ≤1ns
transmission rate 100mbps
insertion loss ≤0.5db
connector type rj45
power nominal operating voltage un 220v
maximum continuous operating voltage uc 385v
nominal discharge current in (820μs) 5ka
maximum discharge current imax (820μs) 10ka
protection level up (820μs,3ka） ≤900v
response time ta ≤1ns
connector type crimping
mechanical parameters dimension 112*60*25mm
weight 150g
mounting type series connected before the protected equipments
housing material aluminum
index of protection ip20
operating environment temperature:-40—+85℃ humidity: ≤95%
others warranty five-year warranty, three-year replacement
