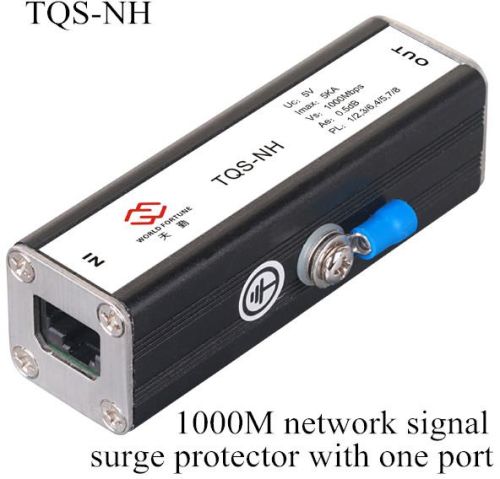

Surge Protection Device

We are offering surge protection device.
1. product features
 multi stage surge protection
 gas-tube + tvs technology
 tvs array technology
 dual protection in common mode and differential mode, multi-channel optional
 low insertion loss
 quick response
 high current capacity
 low limited voltage
 single port
2. applications
 lightning protection of 1001000mbps network equipments
 computer
 server
 switch
3. technical data
model tqs-nh
nominal operating voltage un 5v
nominal discharge current in (820μs) 3ka
maximum discharge current imax (820μs) 5ka
protection level up (820μs,3ka） ≤20v
response time ta ≤1ns
transmission rate 1000mbps
insertion loss ≤0.5db
protection modes 12, 36, 45, 78
protection route 24
dimension 85*25*25mm
weight 81g
mounting type series connected before the protected equipments
housing material a3 steel
index of protection ip20
operating environment temperature:-40—+85℃ humidity: ≤95%
warranty five-year warranty, three-year replacement
related items tqs-nh-24, tqs-nh-4, tqs-nh-8, tqs-nh-16
