Surge Suppressors For Control Signal

We are offering surge suppressors for control signal.
1. product features
 multi stage surge protection
 low insertion loss
 quick response
 high current capacity
 low capacitance
 gas-tube + tvs technology, tvs array technology
 dual protection in common mode and differential mode, multi channel optional
2. applications
 v.1x.27, rs485, rs422;
 lan,can, v.24rs232-c, modem token ring industrial bus
 high speed communication network lines
3. technical data

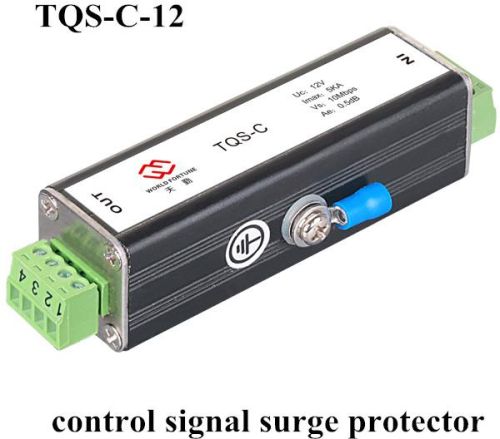

model tqs-c-12
nominal operating voltage un 12v
nominal discharge current in (820μs) 3ka
maximum discharge current imax (820μs) 5ka
protection level up (820μs,3ka） ≤40v
response time ta ≤1ns
transmission rate 10mbps
insertion loss ≤0.5db
protection route 1
dimension 85*25*25mm
connector type screw terminal
weight 78g
mounting type series connected before the protected equipments
housing material aluminumanti-flaming
index of protection ip20
operating environment temperature:-40—+85℃ humidity: ≤95%
warranty five-year warranty, three-year replacement
related items tqs-c2-12, tqs-c-24, tqs-c2-24
