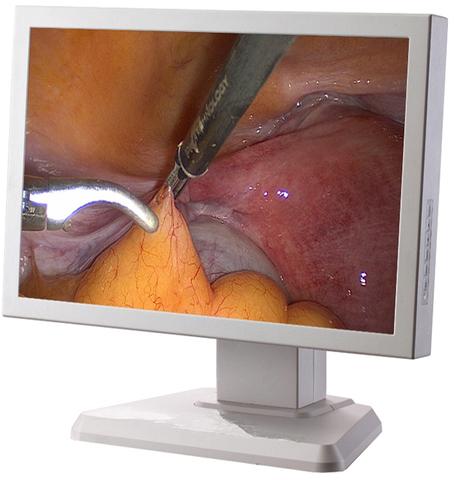

Contact SupplierWe offer excellent quality 26" Surgical Grade LCD Display which is available with following specification:-
Screen Technology - TFT AM LCD
Active Screen Size - 575.76 x 323.71 mm
Aspect Ratio (H:V) - 16:9
Resolution - 1920x1080
Pixel Pitch - 0.3 mm
Viewing Angle (H ~ V) - 178°
Maximum Luminance - 400 cdm²
Contrast Ratio - 1000:1
Color - 16.7 Million (RGB 8-bit Data)
Response Time (Tr + Tf) - 8ms
Scanning Frequency (H; V) - 31~76 kHz., 59~61 Hz.
Housing Color - White
Video Input Signals - Digital Signal : DVI Standard
Analog Signal : 0.8 Vpp, 75�
Sync Signal : TTL Separate Sync
TTL Composite Sync
Combined Sync on Video
Interface Ports - Digital Input : 24 Pin DVI-D
Analog Video : 15 Pin D-sub
BNC Connector (Video, H & V)
S-Video DIN4
Video : YPbPr - BNC x 3 ; RGBS - BNC x 4
Power Consumption (nominal)
100~240V
90W Max
Power Saving - EPA, VESA Standard
Opt Temp - 0 to +40° C
Storage Tem - -20° to +60° C
Relative Humidity - 10% to 90% (Non-Condensing)
Dimensions without Stand - 650 x 398 x 90 mm
Dimensions with Stand - 650 x 463 ~ 583 x 190 mm
Net weight without Stand - 10.5 Kgs
Net weight with Stand - 14.8
MTBF - >50,000 hours
Standard Mounting - VESA Compatible (100 mm)
Supplied Accessories - User Manual
Supplied Accessories - Video cables (DVI, VGA, BNC, S-Video)
Supplied Accessories - Power cable
Warranty - 3 years
Main MarketsKey Customers: Medical & Healthcare, Surgery
Delivery Terms: Ex-Works Mumbai or Installation on-site
Delivery Lead Times: Standard Lead Time
Quality Process Certifications: BVQI, UL, SGS, CE, FCC
