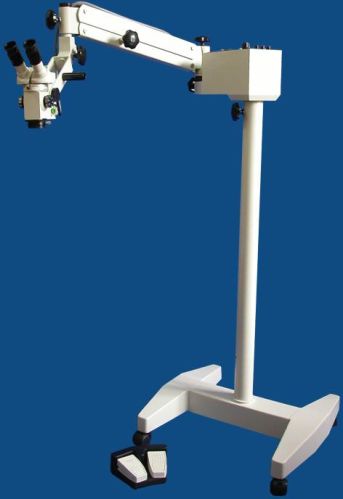

Surgical Microscope

We are offering surgical microscope for ophthalmic surgery.
Specifications
microscope
binoculars 45 degree inclined f'=125 mm
objective f'=200 mm, with red reflex module
eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
diopter adjustment -5d to + 5d
magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
total magnifications 4x, 6x, 10x, 16x, 25x
visual field 52 mm to 8mm
interpupillary distance 55mm to 75 mm
focusing micro-focusing manual 40 mm or motorized, pedal operated
working distance 195 mm
illumination
type coaxial illumination by optical light-guide system
cold light source halogen lamp, 15v150w, twin bulbs
illumination control 3 steps
field of illumination 60mm
power supply ac 110v220v - 220w
light intensity 80, 000 lux
filter green, retinal protection device
arm, stand
type pantographic arm, floor stand
range 1210mm( 1st arm 320mm, 2nd arm 605mm, 3rd arm 170mm)
rotation angle 270 degree
elevation stroke 350 mm
base size 600 mm x 560 mm
weight 80 kgs
accessories
binoculars 0-60 degree inclinable binoculars f'=160 mm
objective f'=175mm, 250 mm
beamsplitter dismountable
adaptor for ccd camera f'=65 mm
integrated bs and ad
observer's monocular
ccd camera
