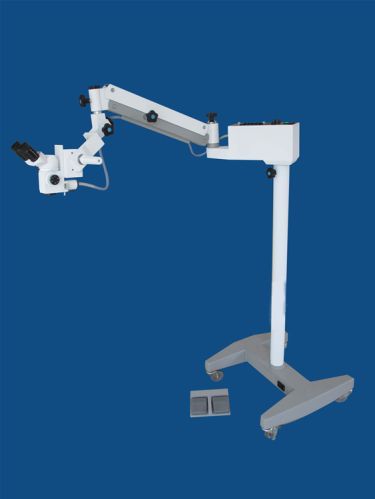

Surgical Microscope, Packaging Type : silver gray

We are offering surgical microscope.
Standard unit for dental surgery
excellent optical property with sharp images
yellow filter
economic price
specifications
microscope
binoculars 45 degree inclined f'=125 mm
objective f'=250mm
eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
diopter adjustment -5d to + 5d
magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
total magnifications 3x, 5x, 8x, 13x, 20x
visual field 65 mm to 10 mm
interpupillary distance 55mm to 75 mm
focusing micro-range of 40 mm motorized, pedal control
working distance 245 mm
illumination
type coaxial illumination by optical light-guide system
cold light source halogen lamp, 15v/150w, twin bulbs
illumination control 3 steps
field of illumination 70mm
power supply ac 110v/60hz 220v/50hz c 220w
light intensity 80, 000 lux
filter green, yellow
arm, stand
type pantographic arm, floor stand
range 1210mm( 1st arm 320mm, 2nd arm 605mm, 3rd arm 170mm)
rotation angle 270 degree
elevation stroke 350 mm
base size 600 mm x 560 mm
weight 80 kgs
accessories
binoculars 0-60 degree inclined binoculars f'=160 mm
objective f'=200mm, 300 mm
beamsplitter dismountable
adaptor for ccd camera with iris diaphragmf'=65 mm
integrated b/s, and a/d
ccd camera.
