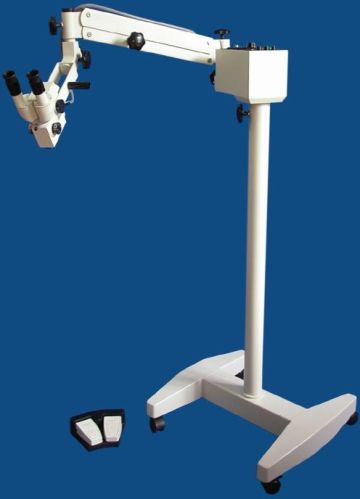

Contact SupplierWe are offering surgical microscope for ent surgery.
specifications
microscope
binoculars straight f'=160 mm
objective f'=300 mm
eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
diopter adjustment -5d to + 5d
magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
total magnifications 2.8x, 4x, 7x, 11.5x, 17x
visual field 80 mm to 12.5 mm
interpupillary distance 55mm to 75 mm
focusing micro-focusing manual 40 mm or motorized, pedal operated
working distance 295 mm
illumination
type coaxial illumination by optical light-guide system
cold light source halogen lamp, 15v150w, twin bulbs
illumination control 3 steps
field of illumination 80 mm
power supply ac 110v60hz 220v50hz -c 220w
light intensity 80, 000 lux
filter blue, green
arm, stand
type pantographic arm, floor stand
range 1210mm( 1st arm 320mm, 2nd arm 605mm, 3rd arm 170mm)
rotation angle 270 degree
elevation stroke 350 mm
base size 600 mm x 560 mm
weight 80 kgs
accessories
binoculars 0-60 degree inclinable binoculars f'=160 mm
objective f'=250 mm, 350mm, 400 mm
beamsplitter dismountable
adaptor for ccd camera f'=65 mm
integrated bs and ad
ccd camera
